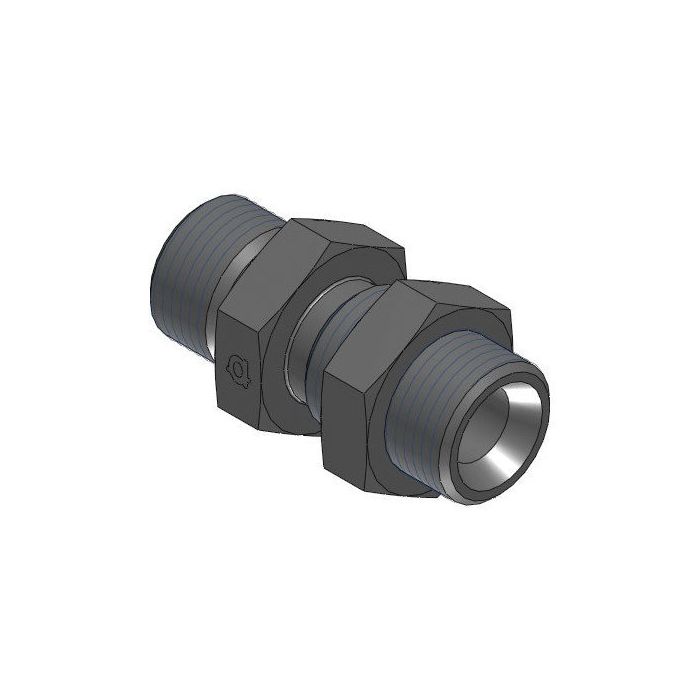

main product photo

Male Bspp X Male Bspp Bulkhead

Ask A Question

Description & Features

This steel straight bulkhead fitting features male Bspp connections on both ends. With a Side 1 and Side 2 size of 1", the fitting is designed for secure and reliable connections in hydraulic systems.

The Male Bspp X Male Bspp Bulkhead offers a robust solution for connecting Bspp ports through a panel or barrier. Each side has a width of 41mm, and the overall length is 74mm.

SKU: 9040-16-16

Supplier Part Number (MPN): 9040-16-16

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPP 60 deg Flare
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Dimensions
74 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
9040 Series
Thread Size
1-11

Product Questions & Answers (3)

Question by: Freddie S on Jun 19, 2025, 2:31 PM
What size ports does this bulkhead fitting work with on both ends?
Answer by: Customer Support on Jun 21, 2025, 6:20 AM
Both sides are 1 inch BSPP, with a thread callout of G 1-11 on each end. So you're getting a straight-through connection, same size all the way across, which keeps things simple when you're running BSPP ports through a panel or barrier.
Question by: Kent S on May 17, 2025, 1:42 PM
trying to run a line through a bracket, is this the kind of bulkhead fitting that lets you pass a BSPP port through a panel?
Answer by: Customer Support on May 19, 2025, 6:05 AM
For routing through a barrier, it’s a straight steel bulkhead fitting meant to connect through a panel or wall. You get male BSPP threads on both ends so you can bring a BSPP connection from one side to the other.
Question by: Randy G on Feb 5, 2026, 12:16 PM
What kind of material is this bulkhead fitting made out of? Just making sure it'll hold up.
Answer by: Customer Support on Feb 6, 2026, 7:09 PM
It's made of steel, so it's built to be pretty durable for hydraulic applications.
