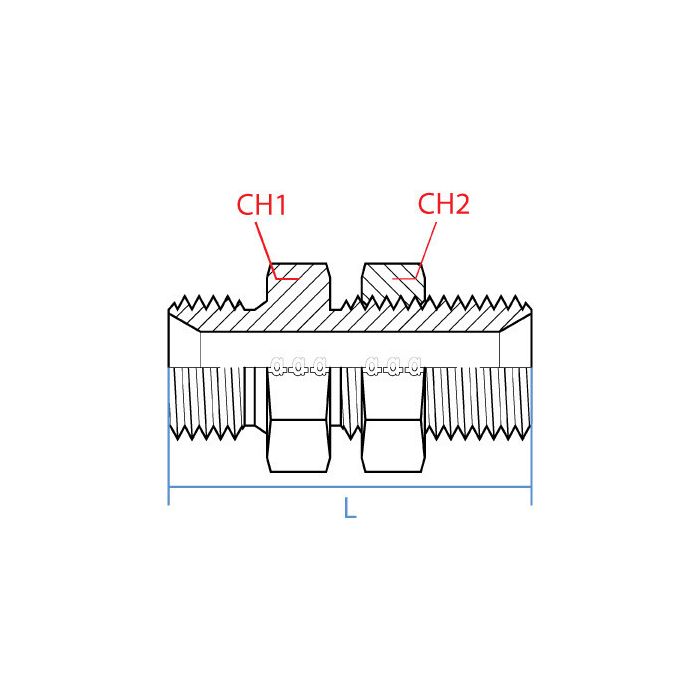

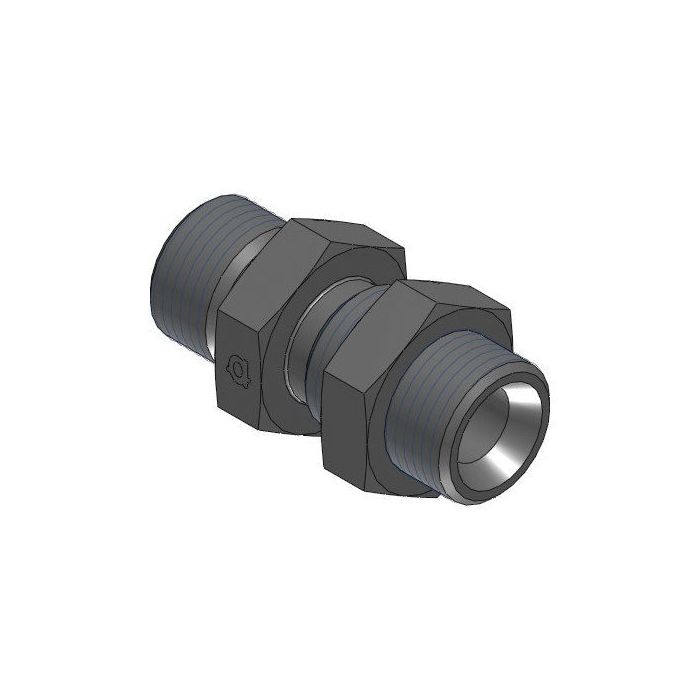

main product photo

Mbspp-Mbspp Bulkhead 3" Long

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this male BSPP bulkhead fitting provides a same-size, same-thread connection on both ends, making it well suited for panel or wall pass-through installations in hydraulic systems. Both sides carry a G 1-1/4 - 11 thread designation at 1-1/4" nominal size, allowing consistent thread engagement across the connection.

The Mbspp-Mbspp Bulkhead 3" Long is an Adaptall product, measuring 76.9mm in overall length with a 50mm hex width on each side. The all-steel construction supports reliable performance in demanding industrial environments where bulkhead-mounted fittings are required to maintain secure, leak-resistant connections through a panel or enclosure wall.

SKU: 9040-20-20

Supplier Part Number (MPN): 9040-20-20

Specifications

Brand
adapt-all
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPP 60 deg Flare
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Dimensions
74 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9040 Series
Thread Size
1-1/4-11

Product Questions & Answers (3)

Question by: Stan A on May 24, 2025, 10:06 AM
both ends are male BSPP on this thing, right? just want to make sure i'm not misreading the specs before i order
Answer by: Customer Support on May 26, 2025, 6:11 AM
Correct on both counts. Each side carries a G 1-1/4 - 11 male BSPP thread at 1-1/4" nominal size, so you're getting a straight same-size male-to-male connection all the way through. No reducers or adapters needed if your panel connections are already set up for that thread on both faces.
Question by: Dustin R on Jun 12, 2025, 9:14 AM
Is this thing solid steel all the way through? I need something that can take a beating.
Answer by: Customer Support on Jun 14, 2025, 8:20 AM
Yes, this bulkhead fitting is constructed entirely from steel, so it's well-suited for demanding industrial applications where you need a secure and leak-resistant connection through a panel or enclosure.
Question by: Lynn M on May 18, 2025, 6:33 PM
got a bulkhead pass-through job, is this one straight through with the same threads on both sides?
Answer by: Customer Support on May 19, 2025, 7:20 PM
For a clean panel or wall pass-through, it gives you a straight, same-size connection on both ends. Both sides are male BSPP with a G 1-1/4 - 11 thread callout, so thread engagement stays consistent from one side of the bulkhead to the other.
