9042-02-04

Ask A Question

Description & Features

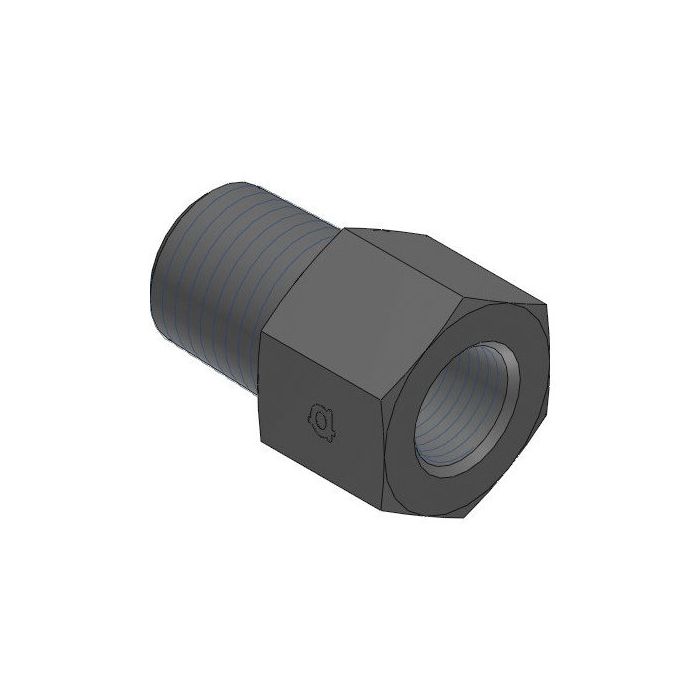

Designed for cross-standard thread conversion, this Adaptall adapter provides a Male BSPT connection on one end and a Female NPT connection on the other, allowing equipment with British Standard Pipe Taper threads to interface directly with NPT-threaded ports and fittings. This type of adapter is commonly used in hydraulic and industrial fluid systems where components from different regional thread standards must be joined without additional modification.

Adaptall is a well-established manufacturer of hydraulic adapters, and the 9042-02-04 is part of their standard adapter range. The BSPT and NPT thread forms are dimensionally similar in taper angle but differ in thread form geometry, making a purpose-built adapter the appropriate solution for a leak-free, reliable connection between the two standards.

SKU: 9042-02-04

Supplier Part Number (MPN): 9042-0204

Specifications

Brand
adapt-all
Connection Size 1
1/8 in
Connection Size 2
1/4 in
Connection Type
FNPT, Male BSP
Connection Type 1
Male BSPT
Connection Type 2
Female NPT
Dimension Standards
ANSI B1.20.3, DIN EN 10226-1
Dimensions
32 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9042 Series
Thread Size
1/8-28 x 1/4-18

Product Questions & Answers (1)

Question by: Troy C on Dec 14, 2025, 2:18 PM
Will this let me hook up some British-threaded stuff to my American NPT fittings?
Answer by: Customer Support on Dec 16, 2025, 10:02 AM
Exactly. This Adaptall adapter lets you directly connect equipment using British Standard Pipe Taper (BSPT) threads to NPT-threaded ports and fittings, which is super handy when you're mixing and matching different regional standards.
