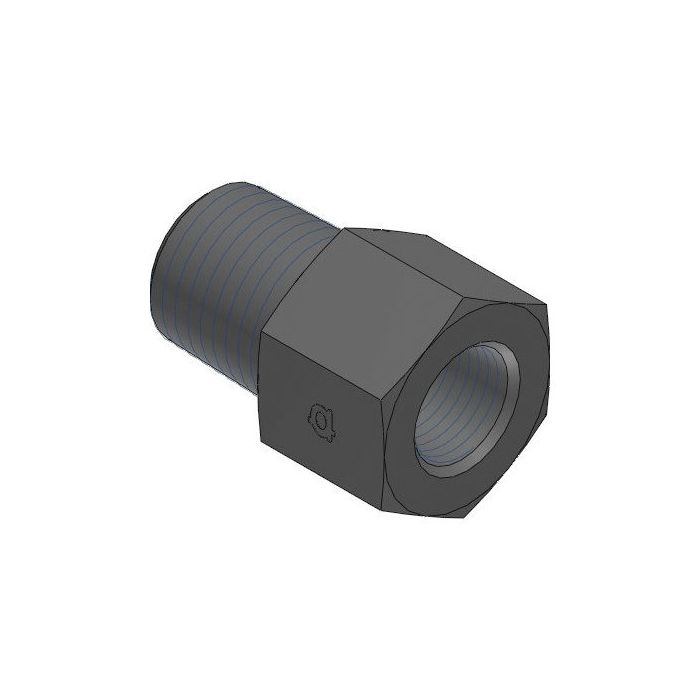

main product photo

Male Bspt X Female Npt

Ask A Question

Description & Features

This straight Adaptall fitting adapts between BSPT and NPT thread types. It features a 3/8" male BSPT (R 3/8 - 19) connection on one side and a 1/8" female NPT (1/8 - 27 NPTF) connection on the other.

Constructed of durable steel, this Male Bspt X Female NPT fitting has a 17.5mm wrench flat and an overall length of 23.2mm.

SKU: 9042-06-02

Supplier Part Number (MPN): 9042-06-02

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
1/8 in
Connection Type
FNPT, Male BSP
Connection Type 1
Male BSPT
Connection Type 2
Female NPT
Dimension Standards
ANSI B1.20.3, DIN EN 10226-1
Dimensions
23 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9042 Series
Thread Size
3/8-19 x 1/8-27

Product Questions & Answers (2)

Question by: Frank A on Feb 11, 2026, 8:32 AM
Will this here fitting let me hook up a British pipe thread to a regular ol' American one?
Answer by: Customer Support on Feb 12, 2026, 9:27 PM
That's exactly what this Adaptall fitting is for; it adapts between BSPT (British Standard Pipe Tapered) and NPT (National Pipe Tapered) thread types. On one side, it's got a 3/8" male BSPT connection, and on the other, it's a 1/8" female NPT connection.
Question by: Rod H on Feb 4, 2026, 9:12 AM
trying to hook a 3/8 BSPT line into a 1/8 NPT port, is this the right adapter?
Answer by: Customer Support on Feb 5, 2026, 11:25 AM
It’s meant for exactly that thread change. One end is a 3/8 inch male BSPT (R 3/8 - 19) and the other end is a 1/8 inch female NPT (1/8 - 27 NPTF), and it’s a straight steel fitting.
