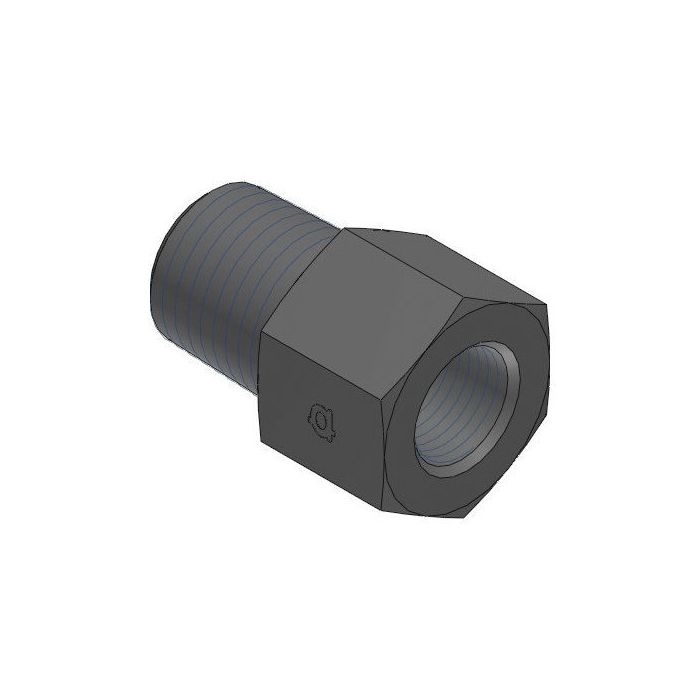

main product photo

Male Bspt X Female Npt

Ask A Question

Description & Features

Engineered for reliable performance, this straight Male BSpt x Female NPT adapter ensures seamless integration in industrial hydraulic systems. Crafted from durable steel, it features an Adaptall design with a 41mm width and a 58.6mm length, offering robust construction and dependable adaptability for demanding environments. The male side is equipped with a 1" BSpt R 1-11 thread type, while the female side boasts a 1" NPTF 1-11.5 thread type, ensuring compatibility with a broad range of equipment and applications.

Manufactured by Adaptall, this adapter is designed to facilitate smooth connections between differing thread types, making it an essential component for maintenance and repair tasks. Its high-quality steel construction provides excellent resistance to wear and tear, ensuring longevity and reliability in high-pressure hydraulic applications.

SKU: 9042-16-16

Supplier Part Number (MPN): 9042-16-16

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPT, Male BSP
Connection Type 1
Male BSPT
Connection Type 2
Female NPT
Dimension Standards
ANSI B1.20.3, DIN EN 10226-1
Dimensions
58 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
9042 Series
Thread Size
1-11 x 1-11-1/2

Product Questions & Answers (2)

Question by: Chad R on Aug 31, 2025, 8:06 PM
Got a 1" BSPT male fitting on a hydraulic line and need to tie into some NPT female ports on a manifold block. This the right adapter for that?
Answer by: Customer Support on Sep 2, 2025, 6:21 AM
That's what this one's built for. The male side carries a 1" BSPT R 1-11 thread and the female side accepts 1" NPTF at 1-11.5 threads per inch, so you're bridging those two thread standards in a straight inline configuration. Both sides are the same nominal size, so there's no reduction happening here. Steel construction holds up well in hydraulic environments where you've got pressure and movement working against your fittings over time.
Question by: Bobby P on Dec 4, 2025, 11:21 AM
What size threads are on this thing? Just wanna make sure it'll fit my setup.
Answer by: Customer Support on Dec 6, 2025, 6:13 AM
The male side has a 1" BSpt R 1-11 thread, and the female side is a 1" NPTF 1-11.5 thread.
