Female Metric Coupling

Ask A Question

Description & Features

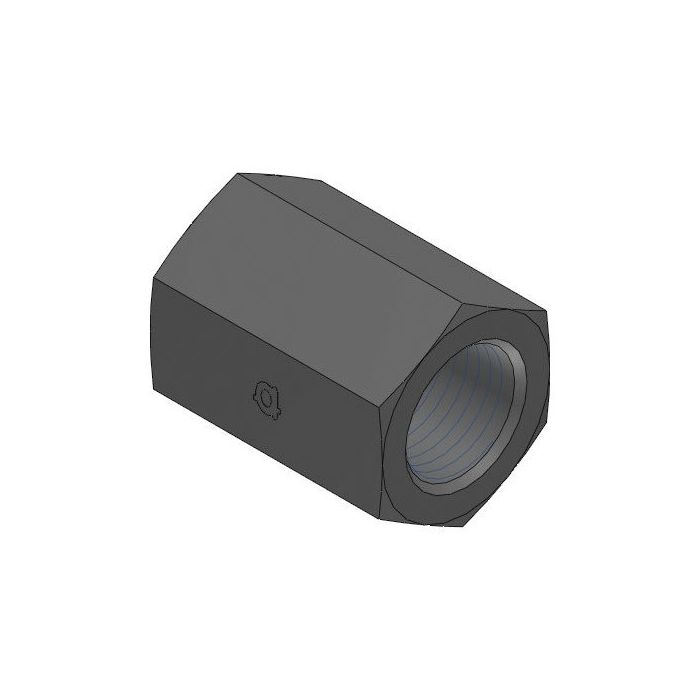

This Female Metric Coupling is expertly crafted from high-quality steel, ensuring durability and reliability in demanding industrial applications. Designed with a straight shape, it connects two metric female ends, featuring a Side 1 callout of M16 x 1.5 and a Side 2 callout of M12 x 1.5. Both sides are female metric types, offering compatibility with a range of hydraulic systems.

The coupling's compact design includes a width of 22mm and a length of 30.7mm, making it suitable for installations where space is limited. This Adaptall brand coupling is engineered to meet rigorous standards, ensuring a secure and efficient connection in your hydraulic setups.

SKU: 9043M-16-12

Supplier Part Number (MPN): 9043M-16-12

Specifications

Brand
adapt-all
Connection Size 1
S16
Connection Size 2
12 mm
Connection Type
Female Metric
Connection Type 1
Female Metric
Connection Type 2
Female Metric
Dimension Standards
DIN 7631, ISO 6149, ISO 9974
Dimensions
30 mm L
Finish
Zinc-Plated
Fitting Type
Coupling
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9043M Series
Thread Size
M16x1.5 x M12x1.5

Product Questions & Answers (3)

Question by: Marvin R on Nov 15, 2025, 7:21 AM
got two female metric ports i need to tie together, one’s M16 x 1.5 and the other is M12 x 1.5. is this the right coupling?
Answer by: Customer Support on Nov 16, 2025, 3:24 PM
For connecting two metric female ends with different sizes, this coupling matches those callouts: Side 1 is M16 x 1.5 female metric and Side 2 is M12 x 1.5 female metric, in a straight steel body.
Question by: Jean W on Dec 9, 2025, 5:08 PM
Will this coupling hold up okay in a hydraulic system running around 2000 psi?
Answer by: Customer Support on Dec 10, 2025, 9:05 PM
This coupling is made from high-quality steel, designed for durability in demanding industrial applications.
Question by: Dale W on Jul 29, 2025, 1:04 PM
got a line running M16 x 1.5 female on one end and M12 x 1.5 female on the other, does this coupling bridge those two sizes straight through?
Answer by: Customer Support on Jul 31, 2025, 8:19 AM
That's what this one does. Side 1 is M16 x 1.5 female and Side 2 is M12 x 1.5 female, so it steps down between those two metric thread sizes in a single straight fitting. Steel construction, 30.7mm long, 22mm across the wrench flats. Solid piece for connecting mismatched metric ends without adding extra fittings in between.
