Female Metric Coupling

Description & Features

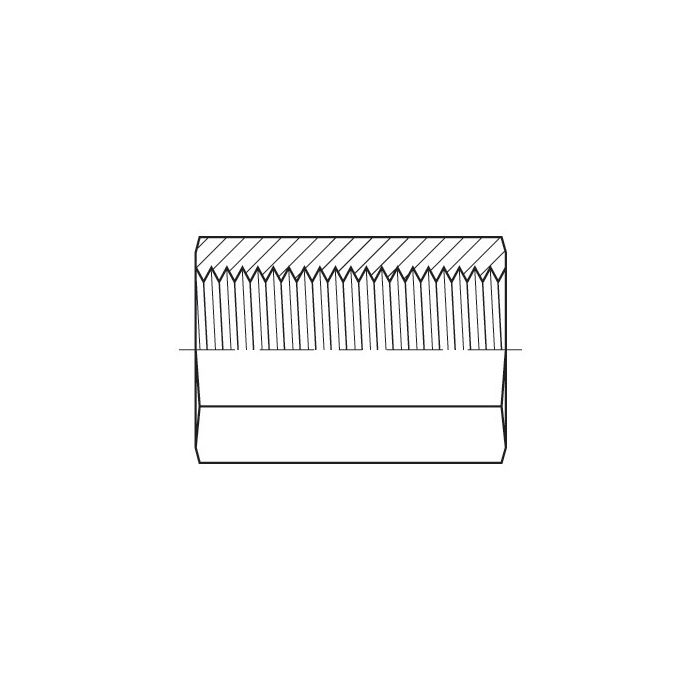

Constructed from steel with a straight configuration, this Female Metric Coupling features M20 x 1.5 threaded connections on both ends, making it well suited for symmetrical metric hydraulic line connections. Both sides share a 20mm female metric thread profile, allowing consistent interface across a fitting run without requiring adapters or thread conversion.

Manufactured by Adaptall, the coupling measures 30.7mm in length with a 27mm wrench width, keeping installation straightforward in confined or standard mounting arrangements. The all-steel build supports reliable service in demanding hydraulic environments where consistent thread engagement is required.

SKU: 9043M-20-20

Supplier Part Number (MPN): 9043M-20-20

Specifications

CH Width 27mm	L Length 30.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M20 X 1.5	Side 1 Gender F	Side 1 Size 20mm	Side 1 Type Metric	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9043M-20-20	Product Weight 0.10 lbs

Product Questions & Answers (3)

Question by: Harold S on May 21, 2025, 10:27 AM

Will this coupling work with standard metric hydraulic lines?

Answer by: Customer Support on May 22, 2025, 10:47 AM

This female metric coupling features M20 x 1.5 threaded connections on both ends, so it's designed for symmetrical metric hydraulic line connections using that thread size.

Question by: Ray C on Mar 14, 2026, 9:21 AM

got two hoses with M20 x 1.5 male ends, will this couple em together without any adapters?

Answer by: Customer Support on Mar 15, 2026, 12:08 PM

For tying two matching metric lines together, it’s a straight steel coupling with M20 x 1.5 female threads on both ends, so it mates to M20 x 1.5 male fittings on each side with no thread conversion.

Question by: Peggy Y on Feb 19, 2026, 6:37 AM

Both ends are female metric on this thing? Just want to make sure I ain't reading it wrong before I order.

Answer by: Customer Support on Feb 20, 2026, 6:56 AM

Correct on both counts. Both sides carry an M20 x 1.5 female metric thread, so you're looking at a symmetrical coupling all the way through. No thread conversion needed, no adapters required. If your line connections on each end are male M20 x 1.5, this fits right in between them and keeps everything consistent.
