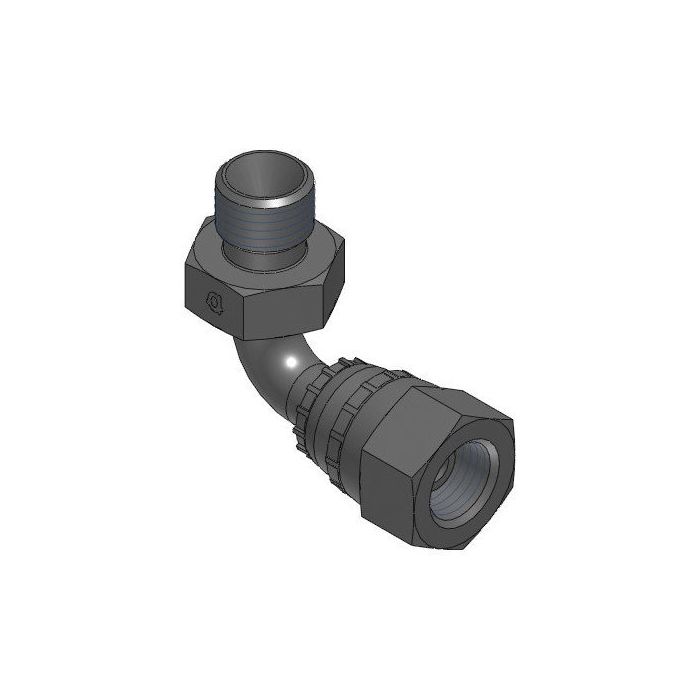

90* Tube Elbow M.Bspp X F.Bspp

Ask A Question

Description & Features

Constructed from steel, this 1-1/4" 90° elbow provides a right-angle directional change in hydraulic line routing where straight connections are not practical. The 90* Tube Elbow M.Bspp X F.Bspp features male BSPP on one end and female BSPP on the other, both sized at G 1-1/4 - 11, making it suitable for extending or redirecting an existing BSPP thread line without changing thread type or size.

Manufactured by Adaptall, the fitting measures 82mm along L1 and 85mm along L2, with a 50mm wrench flat on each side. The male-to-female configuration allows it to function as a directional adapter within a BSPP-threaded assembly, commonly used in hydraulic circuits on industrial machinery and mobile equipment.

SKU: 9045-20-20

Supplier Part Number (MPN): 9045-20-20

Specifications

Brand
adapt-all
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female BSP Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
9045 Series
Thread Size
1-1/4-11

Product Questions & Answers (3)

Question by: Shawn B on Jul 14, 2025, 6:29 PM
Got a BSPP line that needs to make a hard turn but I ain't got room to run it straight, will this fitting let me keep the same thread size all the way through?
Answer by: Customer Support on Jul 16, 2025, 5:14 PM
Same G 1-1/4 - 11 BSPP on both ends, so the thread size and type stay consistent through the turn. The male end threads into your existing female port and the female end accepts the next male fitting in line, letting you redirect the run 90 degrees without swapping to a different thread standard or upsizing anything. Steel construction and 50mm wrench flats on both sides make it straightforward to torque down in tight quarters.
Question by: Johnny M on Feb 25, 2026, 1:03 PM
Will this elbow handle hydraulic fluid okay or is it for somethin' else?
Answer by: Customer Support on Feb 27, 2026, 7:30 AM
This 90-degree elbow is constructed from steel, making it suitable for use in hydraulic circuits with hydraulic fluid.
Question by: Ralph B on Jul 1, 2025, 2:13 PM
got a tight spot on a hydraulic run. is this elbow the kind that lets me turn 90 degrees without changing thread size?
Answer by: Customer Support on Jul 2, 2025, 5:46 PM
For a right angle change in routing, it keeps the same thread on both ends: G 1-1/4 - 11 BSPP. One side is male BSPP and the other side is female BSPP, so it redirects the line without stepping the size up or down.
