90* M.Bspp Adj. X F.Bspp Swvl.

Ask A Question

Description & Features

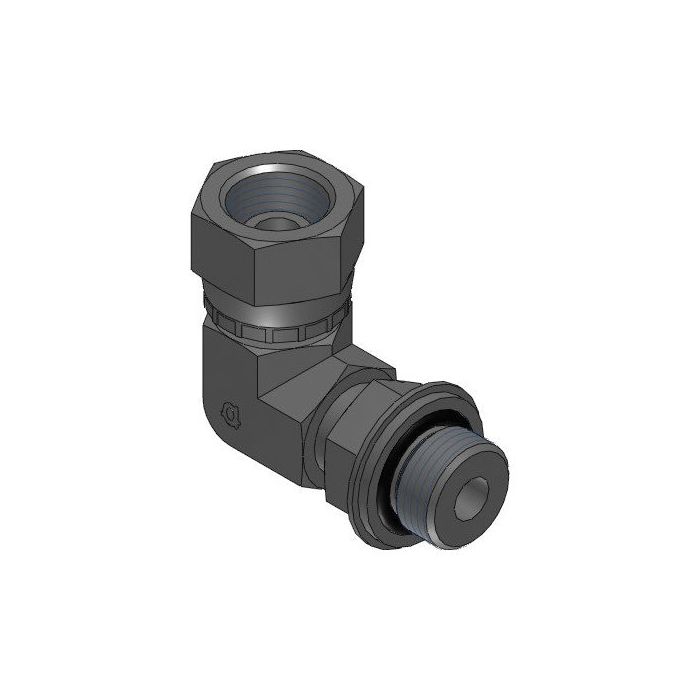

This steel 90° elbow Adaptall fitting features a 1/2" BSPP male adjustable end to a 1/2" BSPP female swivel end.

The 90* M.BSPP Adj. X F.BSPP Swvl. has a Ch1 width of 22mm and Ch2 and Ch3 widths of 27mm. Its L1 length is 40mm, and its L2 Length is 35mm.

SKU: 9046-08-08

Supplier Part Number (MPN): 9046-08-08

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female BSP Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
9046 Series
Thread Size
1/2-14

Product Questions & Answers (3)

Question by: Brett D on Jun 24, 2025, 10:07 AM
What kinda material is this fitting made outta?
Answer by: Customer Support on Jun 26, 2025, 6:59 AM
This elbow fitting is made from steel.
Question by: Cheryl B on May 4, 2025, 5:12 PM
trying to replace a 90 elbow on a hose, is this one 1/2" bspP both sides with a swivel on the female end?
Answer by: Customer Support on May 6, 2025, 8:06 AM
It is a steel 90 degree elbow with G 1/2-14 BSPP on both ends, a 1/2 inch BSPP male adjustable on one side and a 1/2 inch BSPP female swivel on the other.
Question by: Hugh G on Dec 30, 2025, 8:31 AM
what size wrenches am i gonna need to torque this thing down proper, the ch1 and ch2 flats aint the same are they
Answer by: Customer Support on Dec 31, 2025, 7:56 PM
Right, they're different sizes. The Ch1 flat across the male adjustable end measures 22mm, so a 22mm wrench handles that side. The Ch2 and Ch3 flats are both 27mm, so you'll want a 27mm on the swivel end. Having both sizes on hand before you start saves a lot of fumbling around mid-install.
