90* M.Bspp Adj. X F.Bspp Swvl.

Description & Features

This steel 90° elbow Adaptall fitting features a 1" male Bspp adjustable end to a 1" female Bspp swivel end.

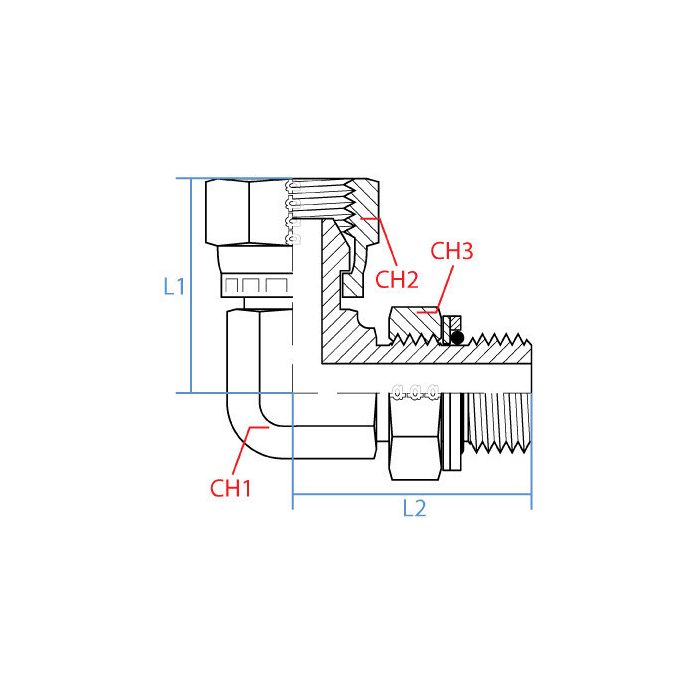

The 90* M.Bspp Adj. X F.Bspp Swvl. has an Adaptall Ch1 width of 33mm, an Adaptall Ch2 width of 41mm, and an Adaptall Ch3 width of 41mm. It also has an Adaptall L1 length of 50mm and an Adaptall L2 Length of 50mm.

SKU: 9046-16-16

Supplier Part Number (MPN): 9046-16-16

Specifications

CH1 Width 33mm	CH2 Width 41mm	CH3 Width 41mm	L1 Length 50mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1 - 11	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9046-16-16	Product Weight 1.20 lbs

Product Questions & Answers (2)

Question by: Dale T on Jan 31, 2026, 8:56 AM

got a tight spot on a hose run, is this the 90 degree elbow with a 1 inch BSPP male on one side and a 1 inch BSPP female swivel on the other?

Answer by: Customer Support on Feb 1, 2026, 4:43 PM

For a tight turn, this fitting gives you a 90° elbow with a G 1 - 11 male BSPP adjustable end on one side and a G 1 - 11 female BSPP swivel end on the other, both in 1 inch size.

Question by: Janet H on Jul 15, 2025, 9:21 PM

Got a 1" BSPP female port on a hydraulic block and need a 90-degree turn coming off it, this fitting work for that kind of hookup?

Answer by: Customer Support on Jul 17, 2025, 6:04 AM

Yeah, that's exactly what this fitting handles. One end is a 1" male BSPP adjustable, so it threads into your female port, and the other end is a 1" female BSPP swivel, which lets you connect your line at a 90-degree angle without fighting the orientation. The swivel end is real handy when you're trying to avoid twist stress on the hose during final assembly. Both thread callouts are G 1-11, so as long as your ports match that spec, you're in good shape.
