45* Tube Elbow M.Bspp X F.Bspp

Ask A Question

Description & Features

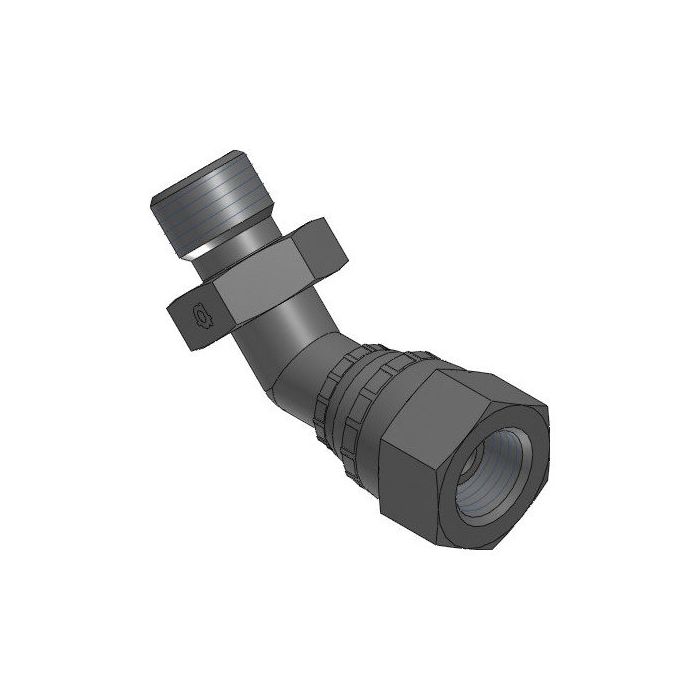

A steel 45° elbow fitting designed for hydraulic and industrial fluid line connections, the 45° Tube Elbow M.BSPP x F.BSPP from Adaptall provides a male G 1/4-19 BSPP connection on one side and a female G 1/4-19 BSPP connection on the other. The 45° angle allows for directional changes in tight or constrained installations where a straight fitting is not practical.

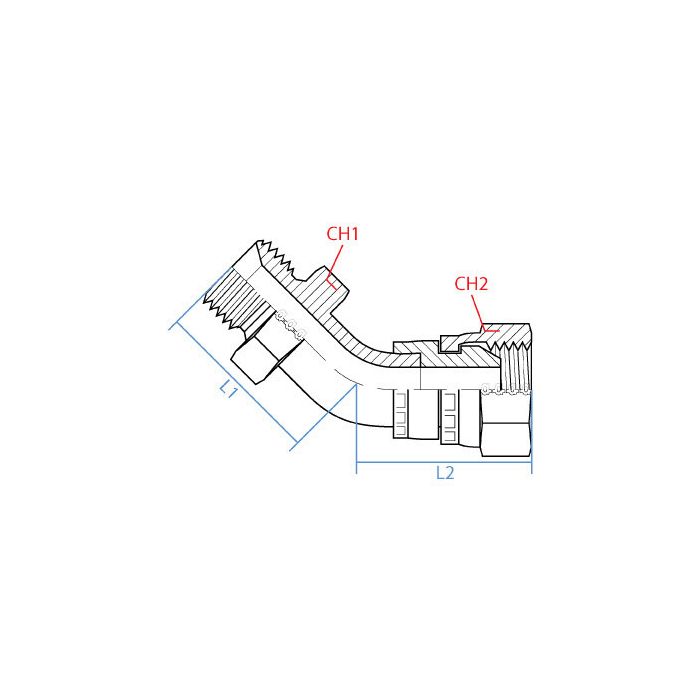

Both sides share a 1/4" BSPP thread size with matching 19mm wrench flats, and the fitting measures 29mm in length on each side. Steel construction makes it suitable for demanding hydraulic line applications requiring durability and reliable thread engagement.

SKU: 9047-04-04

Supplier Part Number (MPN): 9047-04-04

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female BSP Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9047 Series
Thread Size
1/4-19

Product Questions & Answers (3)

Question by: Tony R on Mar 18, 2026, 11:29 AM
need a 45 degree elbow with g 1/4-19 threads on both ends. is this one male on one side and female on the other?
Answer by: Customer Support on Mar 19, 2026, 9:15 PM
For routing a line around a corner, this fitting gives you a 45° turn with a male G 1/4-19 BSPP on one end and a female G 1/4-19 BSPP on the other, so both sides stay the same thread callout and size.
Question by: Merle A on Sep 22, 2025, 6:15 PM
fitting's got a male end on one side and female on the other, that right? trying to figure out if i can thread something onto both ends or if one side is just for connecting into a port
Answer by: Customer Support on Sep 24, 2025, 3:03 PM
One end is a male G 1/4-19 BSPP thread and the other is female G 1/4-19 BSPP, both the same 1/4" size. So yes, you can thread a male fitting into the female end and thread the male end into a female port. It works as an extender or directional adapter depending on how your line is routed.
Question by: Ross H on Apr 18, 2025, 8:25 AM
Will this fitting hold up okay in a hydraulic system on a farm tractor? Just wanna make sure it's tough enough.
Answer by: Customer Support on Apr 19, 2025, 7:52 PM
Steel construction means this elbow fitting should be suitable for demanding hydraulic line applications. It's designed for reliable thread engagement where you need it.
