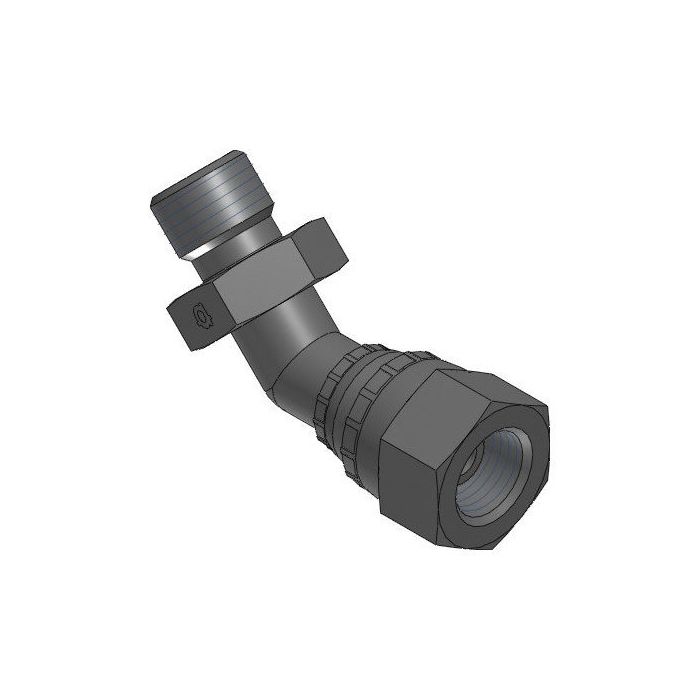

45* Tube Elbow M.Bspp X F.Bspp

Description & Features

Engineered for robust industrial applications, this 45° Tube Elbow is crafted from high-quality steel, ensuring durability and reliability in demanding environments. It features male and female BSPP (British Standard Pipe Parallel) threads, both sized at 1-1/4 inches, facilitating seamless connection in hydraulic systems. The elbow's design allows for efficient directional changes in fluid flow while maintaining system integrity.

Both sides of the elbow have a consistent width of 50mm, with lengths of 50mm and 55mm respectively, enhancing its fit and functionality in complex assemblies. Manufactured by Adaptall, a trusted name in hydraulic solutions, this component is ideal for use in high-pressure systems where precision and strength are paramount.

SKU: 9047-20-20

Supplier Part Number (MPN): 9047-20-20

Specifications

CH1 Width 50mm	CH2 Width 50mm	L1 Length 50mm	L2 Length 55mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9047-20-20	Product Weight 1.03 lbs

Product Questions & Answers (1)

Question by: Rex C on Aug 2, 2025, 12:26 PM

got a tight spot in my hydraulic connections, is this elbow the kind that turns the line 45 degrees without changing thread size?

Answer by: Customer Support on Aug 4, 2025, 6:10 AM

For routing lines in a cramped assembly, this fitting gives you a 45° change in direction while keeping the same thread size on both ends. It is G 1-1/4 - 11 BSPP on the male side and G 1-1/4 - 11 BSPP on the female side.
