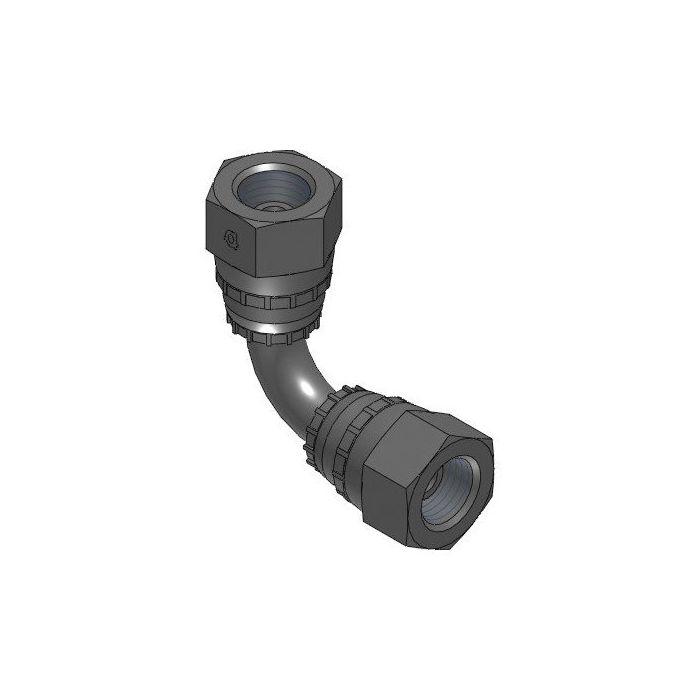

90* Tube Elbow F.Bspp X F.Bspp

Ask A Question

Description & Features

Constructed from steel, this 90° elbow adapter features female BSPP (G 1/4 - 19) connections on both sides, making it well suited for inline direction changes in hydraulic circuits where space or routing constraints require a right-angle transition. Both ports are sized at 1/4" with matching thread callouts, providing a symmetrical configuration that simplifies installation in compatible systems.

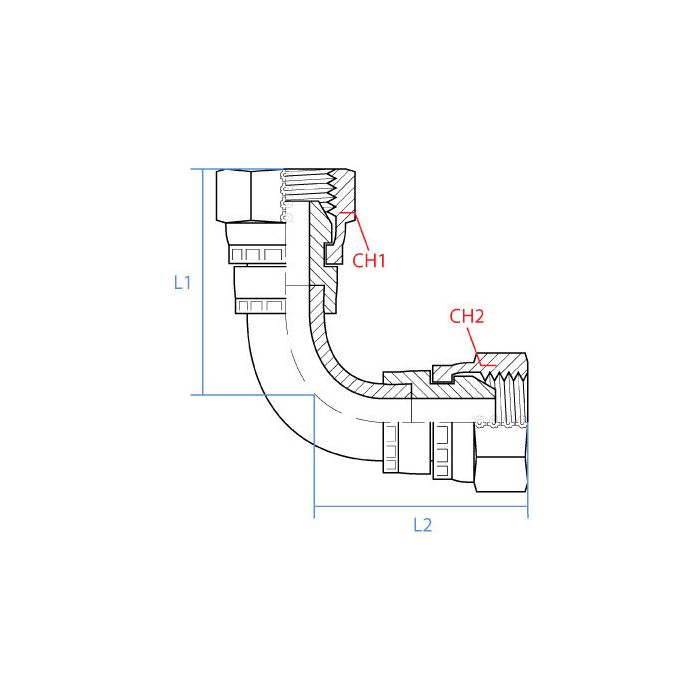

The 90* Tube Elbow F.BSPP X F.BSPP is an Adaptall product with an overall length of 31mm on each leg and a 19mm wrench width, giving it a compact footprint for tight installation environments. Steel construction offers the durability expected in hydraulic line assemblies operating under typical industrial pressures.

SKU: 9050-04-04

Supplier Part Number (MPN): 9050-04-04

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female BSP Swivel
Connection Type 1
Female BSPP 60 deg Flare Swivel
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9050 Series
Thread Size
1/4-19

Product Questions & Answers (3)

Question by: Rusty H on Oct 6, 2025, 6:40 PM
trying to swap an elbow on a little hydraulic line, is this one the kind with female BSPP on both ends in 1/4?
Answer by: Customer Support on Oct 8, 2025, 5:41 PM
Both sides are female BSPP with the same thread callout, G 1/4 - 19. It is a straight swap style part when you need female BSPP on each end and you want a 90 degree turn.
Question by: Phil J on Jan 27, 2026, 9:11 PM
Will this fitting hold up okay in a hydraulic setup that sees pretty consistent pressure?
Answer by: Customer Support on Jan 29, 2026, 5:12 PM
Steel construction gives this 90° elbow the durability you'd expect for typical industrial hydraulic applications.
Question by: Tony B on Aug 30, 2025, 1:28 PM
both ports on this thing are female BSPP, right? just want to make sure before i order cause i've been burned by mismatched fittings before
Answer by: Customer Support on Aug 31, 2025, 7:57 PM
Both sides are female BSPP, sized at 1/4 inch with a G 1/4 - 19 thread callout on each port. The configuration is completely symmetrical, so there's no guessing which end goes where. As long as your line fittings have matching male BSPP threads at that size, you're good to go.
