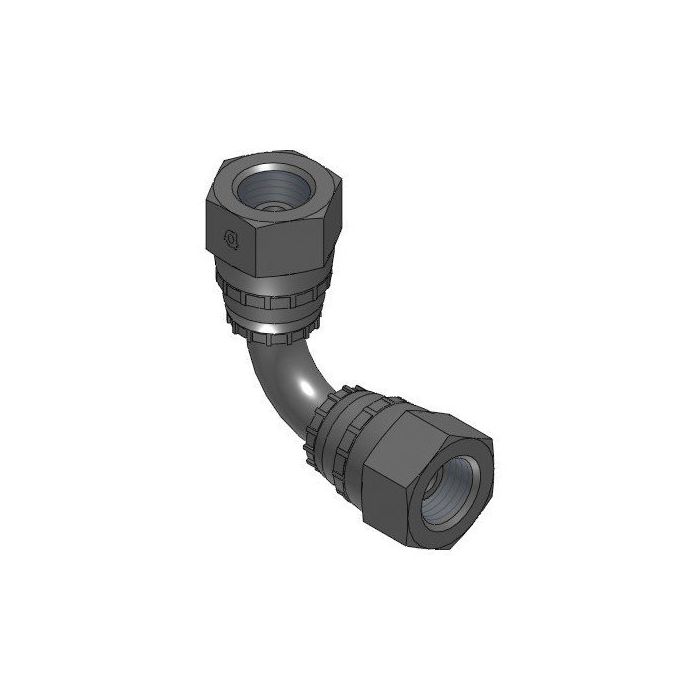

90* Tube Elbow F.Bspp X F.Bspp

Description & Features

Engineered for precision and durability, the 90° Tube Elbow F.Bspp X F.Bspp is an essential component for complex hydraulic systems. This elbow fitting features female British Standard Pipe Parallel (BSPP) threads on both sides, ensuring secure and leak-proof connections. Manufactured from high-quality steel, this component is built to withstand demanding industrial environments.

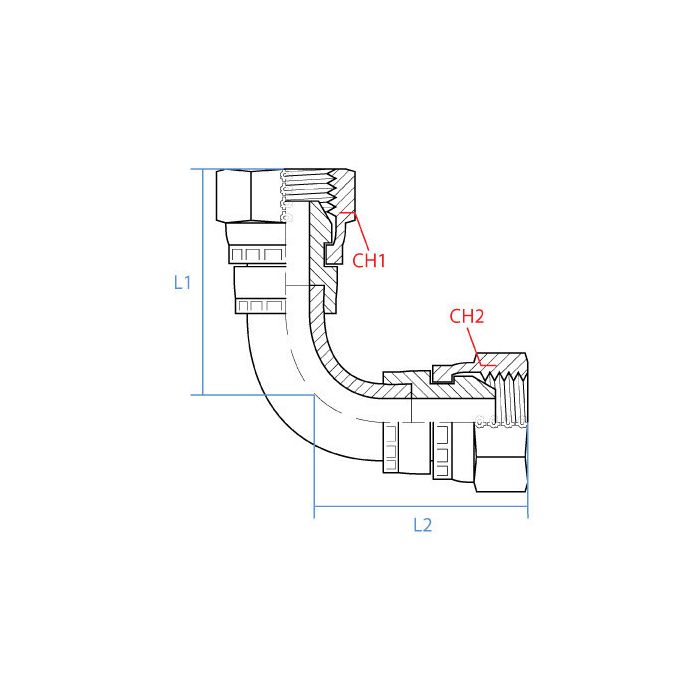

With a 50mm width and 83mm length on both sides, the elbow is designed to facilitate smooth directional changes in fluid flow. The G 1-1/4 - 11 thread size supports a wide range of hydraulic applications, offering versatility and compatibility. The 90° angle facilitates efficient space utilization within hydraulic assemblies, making it ideal for compact systems requiring precise fluid routing.

SKU: 9050-20-20

Supplier Part Number (MPN): 9050-20-20

Specifications

CH Width 50mm	L1 Length 83mm	L2 Length 83mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1-1/4 - 11	Side 1 Gender F	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9050-20-20	Product Weight 1.46 lbs

Product Questions & Answers (2)

Question by: Tony P on Apr 21, 2025, 8:39 PM

Both sides are female BSPP on this thing, right? Just wanna make sure before I go orderin' the wrong part for my line setup.

Answer by: Customer Support on Apr 22, 2025, 9:41 PM

Correct on both ends. Each side carries a G 1-1/4 - 11 female BSPP thread, so you're working with the same connection type throughout. That parallel thread profile is what gives you a reliable, leak-resistant seal when everything's torqued down proper. If your existing lines are already running BSPP male fittings at 1-1/4 inch, this elbow drops right into that setup without any adapter in between.

Question by: Stan G on Dec 19, 2025, 7:19 PM

What kind of steel is this elbow made from?

Answer by: Customer Support on Dec 21, 2025, 6:28 AM

The elbow fitting is manufactured from high-quality steel, designed to withstand demanding industrial environments.
