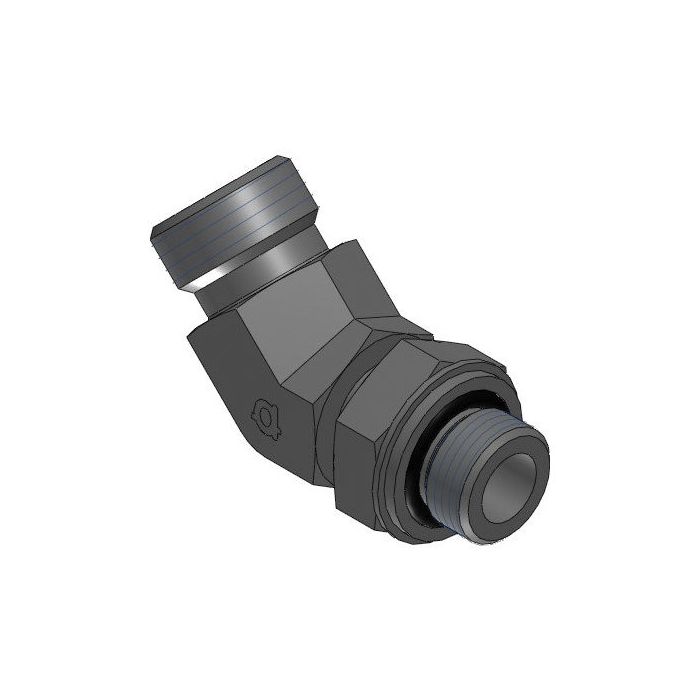

main product photo

45* Elb. Mbspp X Adjust.Mbspp

Ask A Question

Description & Features

This steel 45-degree elbow adapter connects a 3/8" male BSPP port on one end to an adjustable 1/4" male BSPP fitting on the other, making it well suited for hydraulic circuits where directional routing and thread orientation both need to be controlled. The 45° Elbow MBSPP x Adjustable MBSPP configuration allows the outlet side to be repositioned to the desired angle before locking, reducing the need for additional fittings in tight installations.

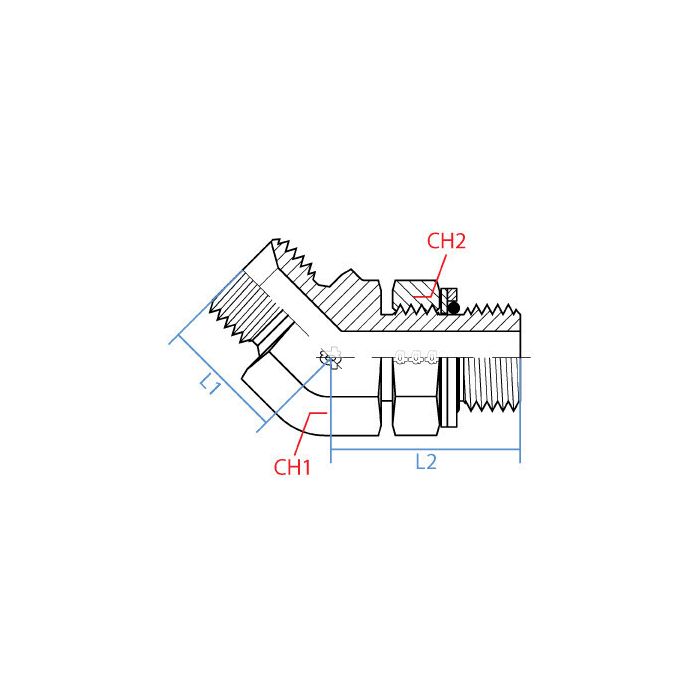

Manufactured by Adaptall in steel, this fitting features wrench flats of 19mm on both sides. With an L1 length of 22mm and an L2 length of 33mm, it maintains a compact profile suitable for space-constrained assemblies. Thread callouts are G 3/8-19 on side one and G 1/4-19 on side two, both conforming to BSPP standards.

SKU: 9051-06-04

Supplier Part Number (MPN): 9051-06-04

Alternate Part Numbers: C1FE89

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPP 60 deg Flare
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9051 Series
Thread Size
1/4-19 x 3/8-19

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Scott W on Jul 30, 2025, 9:00 AM
What size threads does this thing use? I see 3/8" and 1/4", just want to make sure I'm reading it right.
Answer by: Customer Support on Jul 31, 2025, 8:15 PM
You've got it right. This adapter features a 3/8" male BSPP port on one side and an adjustable 1/4" male BSPP fitting on the other.
