45* Elb. Mbspp X Adjust.Mbspp

Ask A Question

Description & Features

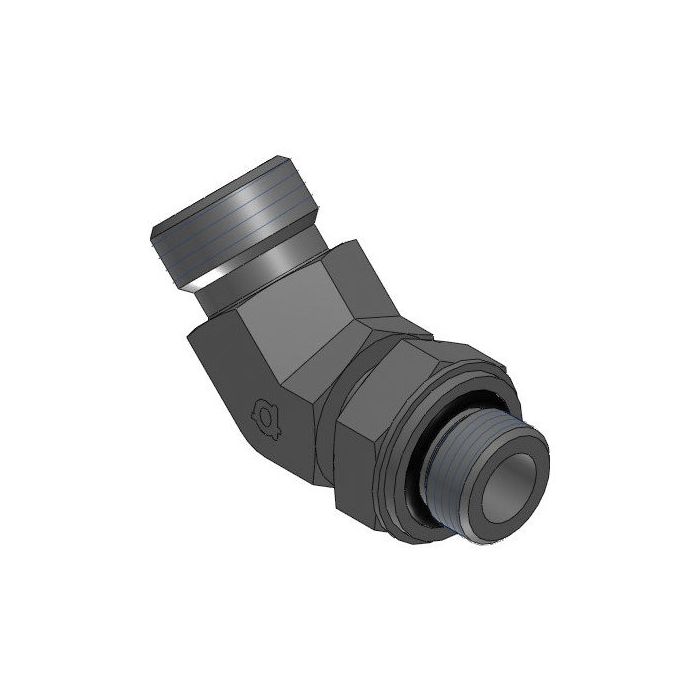

Configured as a 45° elbow, this steel hydraulic fitting connects two 3/4" male BSPP (G 3/4 - 14) ports, with one side featuring an adjustable male BSPP end, the 45* Elb. Mbspp X Adjust.Mbspp allows for precise rotational alignment during installation. The adjustable end simplifies fitting orientation in tight or angled installations where fixed-position fittings would be impractical.

Manufactured from steel, this Adaptall fitting measures 31mm on the L1 length and 42mm on the L2 length, with wrench flats of 27mm (Ch1) and 36mm (Ch2). Both sides carry the same 3/4" thread size and BSPP thread type, making it suitable for same-size inline connections requiring a directional change in hydraulic lines.

SKU: 9051-12-12

Supplier Part Number (MPN): 9051-12-12

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPP 60 deg Flare
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
9051 Series
Thread Size
3/4-14

Product Questions & Answers (2)

Question by: Vince B on Aug 30, 2025, 12:50 PM
trying to get a hose to turn a corner without kinkin it up, is this a 45 degree elbow and are both ends the same thread?
Answer by: Customer Support on Aug 31, 2025, 7:31 PM
Built as a 45° elbow, it gives you that angled change in direction while keeping the connection size the same on both sides. Both ends are 3/4 inch male BSPP with the G 3/4 - 14 thread callout.
Question by: Melvin C on Dec 28, 2025, 1:44 PM
got a hydraulic line that needs to make a 45 degree turn and both ports are 3/4 BSPP male, will this fitting work for that?
Answer by: Customer Support on Dec 30, 2025, 6:31 AM
For same-size 3/4" BSPP male-to-male connections that need a 45 degree directional change, yeah this is exactly what you'd want. Both sides are G 3/4-14 male BSPP threads, so the thread spec matches up on each end. The 45 degree elbow shape handles the directional change, and the adjustable end on one side lets you rotate it into position during installation so you're not fighting the fitting to get your line pointed the right way.
