90* Elb. Mbspp X Adjust. Mbspp

Ask A Question

Description & Features

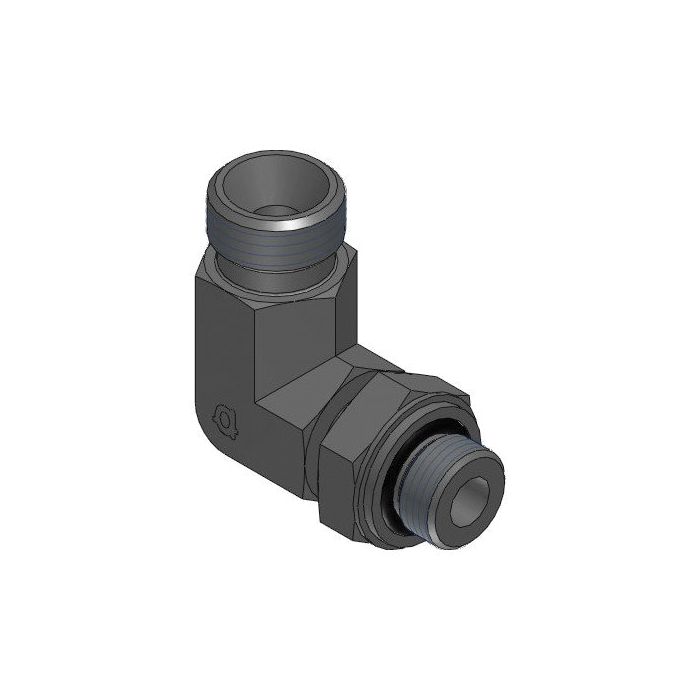

This steel Adaptall 90* Elb. Mbspp X Adjust. Mbspp features a 90° elbow shape and is designed for hydraulic applications. It has a 3/8" BSPP male connection on Side 1 with a G 3/8 - 19 callout, and a 1/4" BSPP male connection on Side 2 with a G 1/4 - 19 callout.

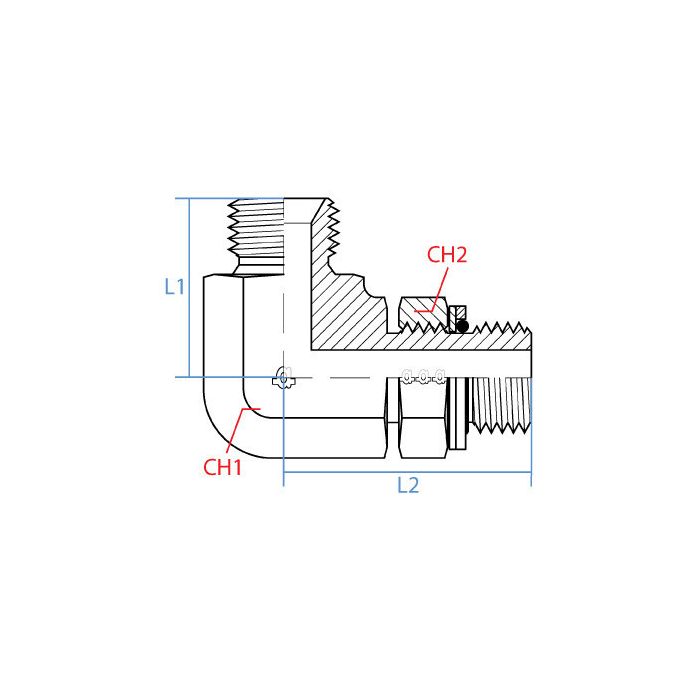

The Adaptall Ch1 Width is 19mm, the Adaptall Ch2 Width is 19mm, the Adaptall L1 Length is 30mm, and the Adaptall L2 Length is 35mm.

SKU: 9052-06-04

Supplier Part Number (MPN): 9052-06-04

Alternate Part Numbers: C1FA85

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPP 60 deg Flare
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9052 Series
Thread Size
1/4-19 x 3/8-19

Product Questions & Answers (3)

Question by: Kurt M on May 4, 2025, 9:25 AM
got a spot on a hydraulic line where I need to drop from 3/8 BSPP down to 1/4 BSPP and turn the corner at the same time, this fitting do that in one shot?
Answer by: Customer Support on May 5, 2025, 9:03 PM
Yeah, that's exactly what this fitting handles. One side is 3/8 BSPP male and the other is 1/4 BSPP male, and the whole thing turns 90 degrees, so you're making the size transition and the direction change without stacking two separate fittings together. Both threads are the parallel BSPP style, G 3/8-19 on the larger end and G 1/4-19 on the smaller end. Steel construction, so it holds up in standard hydraulic line work without issue.
Question by: Tony W on May 29, 2025, 5:08 PM
What size are the ends on this elbow fitting?
Answer by: Customer Support on May 31, 2025, 2:15 PM
It has a 3/8" BSPP male connection on one side and a 1/4" BSPP male connection on the other.
Question by: Earl W on Feb 17, 2026, 2:10 PM
trying to replace an elbow on a little hydraulic line, is this one 3/8 BSPP male on one end and 1/4 BSPP male on the other?
Answer by: Customer Support on Feb 19, 2026, 6:30 AM
It is a 90 degree steel elbow with BSPP male threads on both sides. Side 1 is 3/8 inch BSPP with a G 3/8 - 19 callout, and Side 2 is 1/4 inch BSPP with a G 1/4 - 19 callout.
