90* Elb. Mbspp X Adjust.Mb

Description & Features

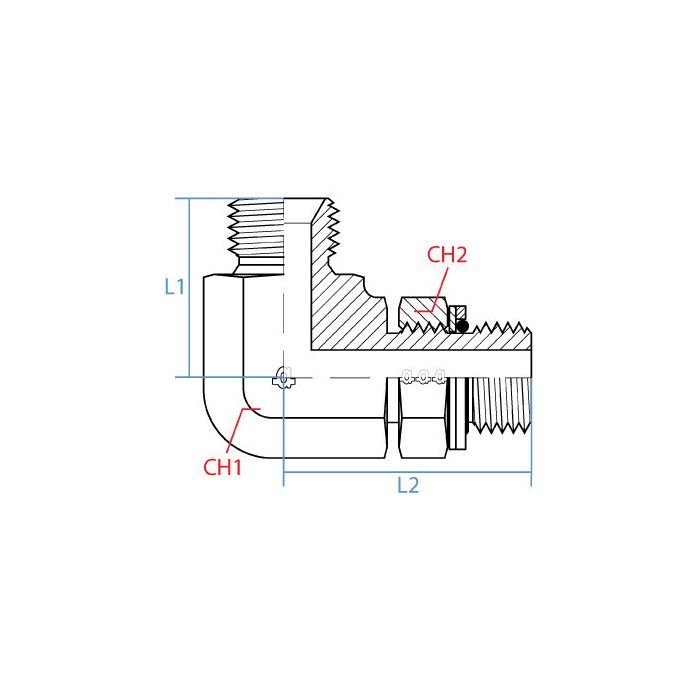

Crafted from durable steel, this 90° Elbow fitting ensures reliable performance in industrial hydraulic applications. The elbow features a G 3/8 - 19 male BSPP connection on Side 1, measuring 3/8", and a G 1/2 - 14 male BSPP connection on Side 2, measuring 1/2". This design facilitates efficient directional change in hydraulic systems, making it an essential component for versatile connectivity. The Adaptall brand ensures compatibility and precision engineering, with a Ch1 width of 22mm and Ch2 width of 27mm, ensuring a snug fit and secure installation.

The compact dimensions, with an L1 length of 33mm and an L2 length of 38mm, allow this elbow fitting to be used in tight spaces without compromising on performance. Its robust construction makes it suitable for high-pressure environments, providing a dependable solution for industrial setups. Whether used in manufacturing or heavy machinery, this elbow fitting offers durability and ease of use.

SKU: 9052-06-08

Supplier Part Number (MPN): 9052-06-08

Specifications

CH1 Width 22mm	CH2 Width 27mm	L1 Length 33mm	L2 Length 38mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9052-06-08	Product Weight 0.35 lbs

Product Questions & Answers (1)

Question by: Frank R on Jul 9, 2025, 7:10 AM

trying to swap an elbow on a machine, are both ends on this one male BSPP and what sizes are they?

Answer by: Customer Support on Jul 10, 2025, 8:25 PM

Both connections are male BSPP. Side 1 is G 3/8 - 19 (3/8 inch) and Side 2 is G 1/2 - 14 (1/2 inch).
