90* Elb. Mbspp X Adjust.Mbspp

Description & Features

Constructed from steel, this 90° elbow fitting connects a 3/4" Male BSPP thread (G 3/4-14) on one end to an adjustable 1/2" Male BSPP thread (G 1/2-14) on the other, making it well suited for hydraulic line routing where a right-angle transition between two different BSPP thread sizes is required. The adjustable end allows rotational positioning during installation, which helps align connected lines without stressing adjacent fittings or hoses.

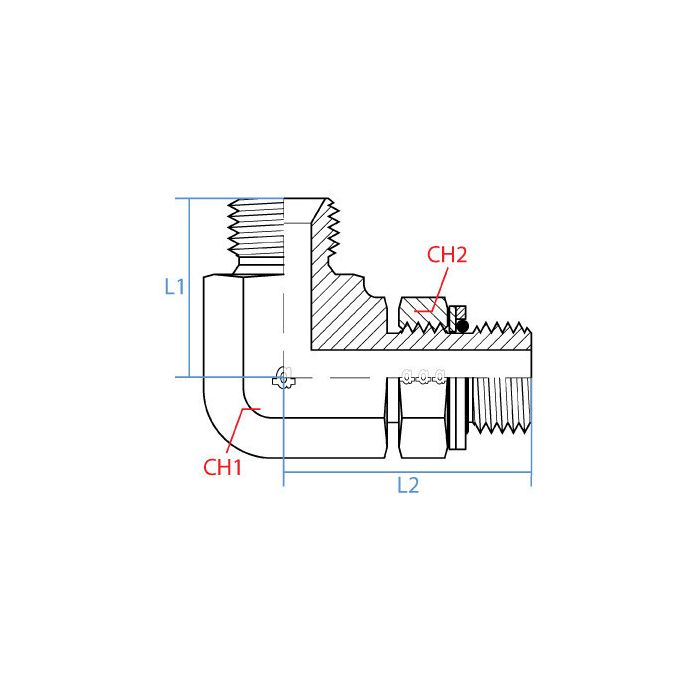

The 90* Elb. Mbspp X Adjust.Mbspp is an Adaptall product, with wrench flats on both ends measuring 27mm across. Overall assembled dimensions are 43mm on the L1 axis and 40mm on the L2 axis, keeping the footprint compact in tight installation environments.

SKU: 9052-12-08

Supplier Part Number (MPN): 9052-12-08

Specifications

CH1 Width 27mm	CH2 Width 27mm	L1 Length 43mm	L2 Length 40mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9052-12-08	Product Weight 0.55 lbs

Product Questions & Answers (3)

Question by: Curt B on May 6, 2025, 7:02 PM

trying to swap a fitting and i need a 90 with different bspP sizes. is this one 3/4 male on one side and 1/2 male on the other?

Answer by: Customer Support on May 8, 2025, 9:41 AM

For a right angle transition between two BSPP male sizes, it matches that setup. One end is G 3/4-14 male BSPP and the other end is G 1/2-14 male BSPP, with the 1/2 side being the adjustable end.

Question by: Wayne G on Jul 7, 2025, 12:46 PM

What size wrench do I need to tighten this fitting down?

Answer by: Customer Support on Jul 9, 2025, 6:27 AM

Both ends of this Adaptall elbow have wrench flats that measure 27mm across.

Question by: Ralph J on Aug 25, 2025, 8:43 AM

Got a hydraulic line that needs to drop down at a right angle and step down from 3/4 to 1/2 inch BSPP all in one shot, this fitting handle that?

Answer by: Customer Support on Aug 26, 2025, 12:09 PM

That's what this elbow is built for. One end is a fixed 3/4" Male BSPP (G 3/4-14) and the other is a 1/2" Male BSPP (G 1/2-14), and the whole thing turns the line 90 degrees while making that size transition. Steel construction, both wrench flats are 27mm, and the overall footprint comes in at 43mm on one axis and 40mm on the other, so it tucks in reasonably tight.
