90* Elb. Mbspp X Adjust.Mbspp

Description & Features

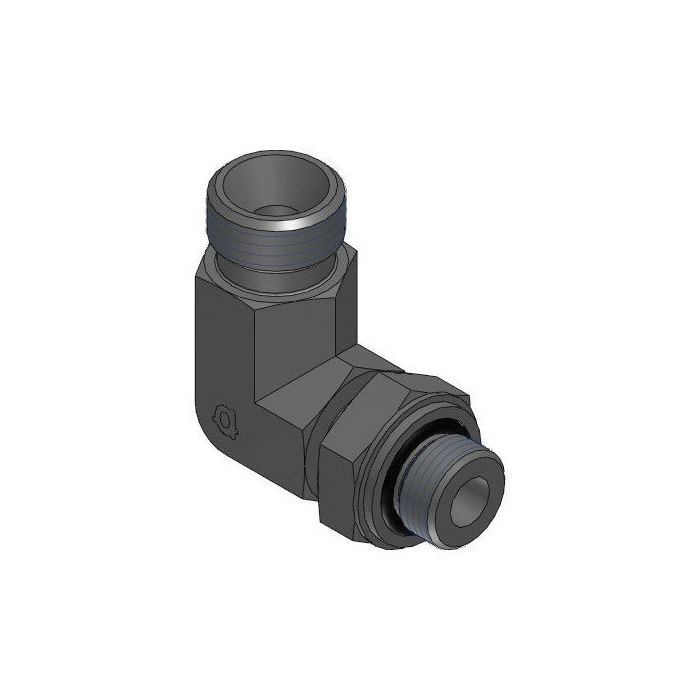

Constructed from steel, this 90° elbow adapter connects two 1-inch male BSPP (G 1-11) threaded ports, with one side featuring an adjustable male BSPP end to allow rotational positioning after installation. The 90* Elb. Mbspp X Adjust.Mbspp is an Adaptall fitting designed for use in hydraulic systems where a right-angle transition between same-size BSPP connections is required.

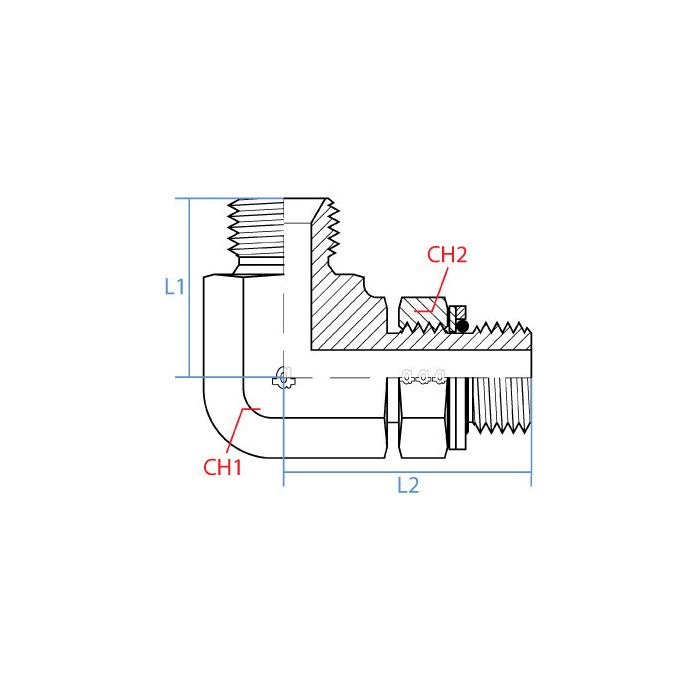

With a Ch1 width of 33mm and Ch2 width of 41mm, the fitting measures 50mm along L1 and 44mm along L2. The adjustable side allows the elbow orientation to be set during assembly, which is useful when routing lines in confined or congested equipment layouts. Steel construction supports the mechanical demands typical of hydraulic circuit applications.

SKU: 9052-16-16

Supplier Part Number (MPN): 9052-16-16

Specifications

CH1 Width 33mm	CH2 Width 41mm	L1 Length 50mm	L2 Length 44mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9052-16-16	Product Weight 0.95 lbs

Product Questions & Answers (2)

Question by: Tommy Y on Jan 15, 2026, 9:32 AM

Will this fitting hold up okay in a hydraulic system, or is it more for low-pressure stuff?

Answer by: Customer Support on Jan 17, 2026, 7:09 AM

Built from steel, this elbow adapter is designed to handle the mechanical demands you'd expect in typical hydraulic circuit applications.

Question by: Pete B on Oct 27, 2025, 9:54 PM

got two 1 inch BSPP male ports to hook together with a right angle, is this the right fitting?

Answer by: Customer Support on Oct 29, 2025, 4:18 PM

For a same-size 90 degree turn between two male BSPP connections, this elbow matches G 1-11 on both ends, both male, and both 1 inch.
