45* Elb. Male Bspp X Male Bspt

Description & Features

Constructed from steel, this 45° elbow adapter connects a Male BSPP thread on one side to a Male BSPT thread on the other, both in 1/4" size (G 1/4-19 and R 1/4-19 respectively). The angled body allows a direction change within a hydraulic assembly where a straight fitting would not be practical.

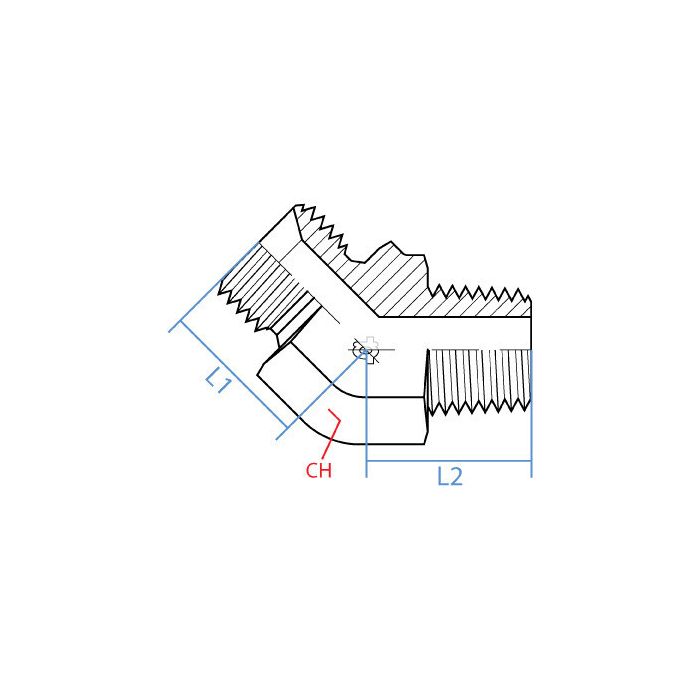

The 45* Elb. Male BSPP X Male Bspt is part of the Adaptall interchangeable fitting system. With an L1 length of 20mm, an L2 length of 23mm, and a wrench width of 14mm, it is a compact adapter suited for tight-space installations in hydraulic circuits requiring a transition between BSPP and BSPT threaded connections.

SKU: 9054-04-04

Supplier Part Number (MPN): 9054-04-04

Specifications

Brand adapt-all	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Male BSP	Connection Type 1 Male BSPP 60 deg Flare	Connection Type 2 Male BSPT	Dimension Standards BS 5200, DIN EN 10226-1, ISO 1179, ISO 7-1, ISO 8434-6	Finish Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 14 mm	Material Steel	Material Construction Carbon Steel	Series 9054 Series	Thread Size 1/4-19

Product Questions & Answers (1)

Question by: Lee P on Oct 19, 2025, 9:59 AM

So this is a 45 degree angle, right? Just making sure before I order.

Answer by: Customer Support on Oct 21, 2025, 6:22 AM

That's correct. This is a 45-degree elbow adapter, designed to change the direction of your hydraulic line at a 45-degree angle.
