90* Male Bspp Elbow

Ask A Question

Description & Features

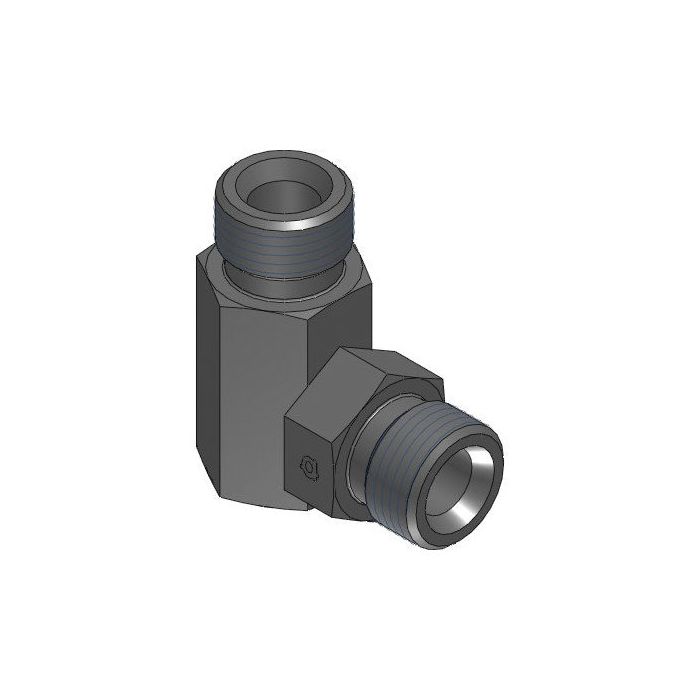

Constructed from steel, this 90° elbow fitting provides a right-angle change of direction in hydraulic lines using BSPP threaded connections on both ends. Both sides are male G 1/4-19 BSPP, making it suited for use in compact hydraulic assemblies where routing constraints require a directional change without additional adapters.

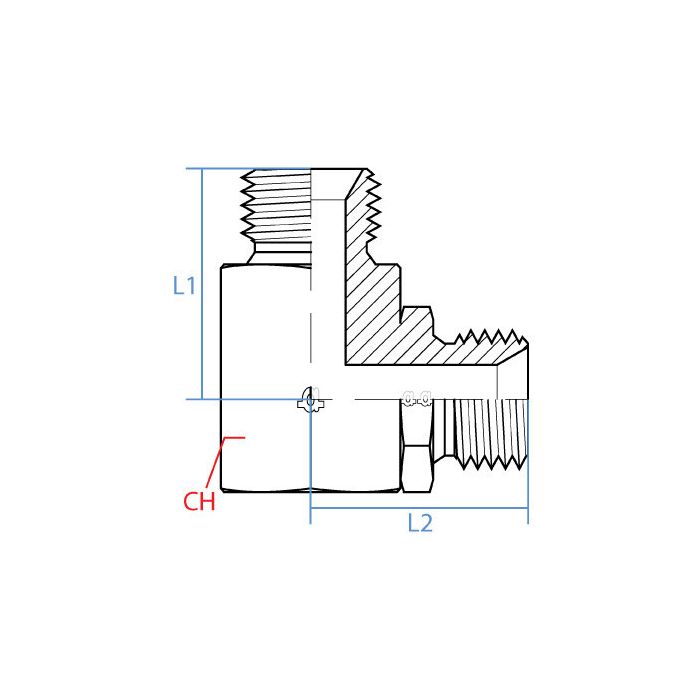

The 90* Male BSPP Elbow carries a 19mm wrench width and equal L1 and L2 lengths of 21mm, keeping the overall installed footprint tight. Manufactured by Adaptall, it fits within their modular adapter system and is compatible with standard G 1/4 BSPP ported components and equipment.

SKU: 9055-04-04

Supplier Part Number (MPN): 9055-04-04

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPP 60 deg Flare
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
16 mm
Material
Steel
Material Construction
Carbon Steel
Series
9055 Series
Thread Size
1/4-19

Product Questions & Answers (3)

Question by: Tommy H on May 25, 2025, 6:52 AM
trying to keep my hose run tight, is this the right elbow if both ports are G 1/4-19 BSPP male?
Answer by: Customer Support on May 26, 2025, 10:03 AM
Built as a right-angle adapter with male G 1/4-19 BSPP threads on both ends, it matches components that take standard G 1/4 BSPP connections on each side.
Question by: Neal T on Dec 10, 2025, 7:42 PM
both ends are male BSPP on this thing? just want to make sure before i order, got a G 1/4 port on my manifold and need something to make a 90 turn off it
Answer by: Customer Support on Dec 12, 2025, 6:51 AM
Both ends are male G 1/4-19 BSPP, so you'd need a female-ported component or adapter on each side to mate with this fitting. It won't thread directly into another male port. If your manifold has a female G 1/4 BSPP port, one end connects there, and whatever you're routing to on the other side needs the same female thread. Pretty common setup for making a clean right-angle turn off a ported block without adding extra pieces in between.
Question by: Clint H on Dec 25, 2025, 8:40 AM
Is this elbow fitting made of steel?
Answer by: Customer Support on Dec 26, 2025, 10:09 AM
Yes, the 90° Male BSPP Elbow is constructed from steel.
