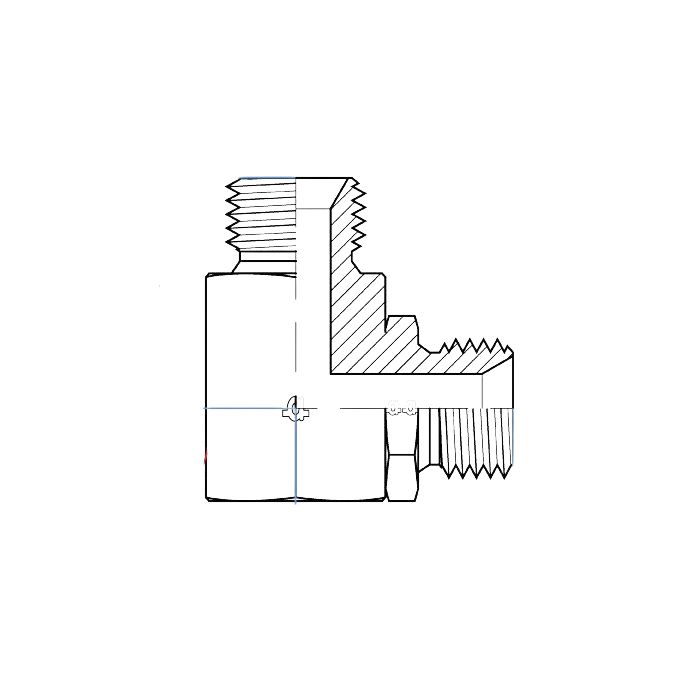

main product photo

90* Male Bspp Elbow

Ask A Question

Description & Features

This steel 90° elbow features a male BSPP Side 1 with a 3/4" size and G 3/4 - 14 callout. The Side 2 connection is also male BSPP, sized at 1/2" with a G 1/2 - 14 callout.

This 90* Male BSPP Elbow is an Adaptall product.

SKU: 9055-12-08

Supplier Part Number (MPN): 9055-12-08

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPP 60 deg Flare
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
9055 Series
Thread Size
3/4-14 x 1/2-14

Product Questions & Answers (3)

Question by: Wade S on May 22, 2025, 9:52 PM
both sides on this fitting are male BSPP? just want to make sure before I order, got burned before buying something I thought was male/female
Answer by: Customer Support on May 24, 2025, 4:17 PM
Both connections are male BSPP, yes. Side 1 is the 3/4 inch with a G 3/4-14 thread, and Side 2 is the 1/2 inch with a G 1/2-14 thread. So you'd need female BSPP ports or fittings on whatever you're connecting it to on both ends.
Question by: Todd H on Aug 11, 2025, 10:52 AM
What size threads does this thing have on each end? Just wanna make sure it'll fit my setup.
Answer by: Customer Support on Aug 12, 2025, 2:49 PM
It has a 3/4" male BSPP thread on one end (G 3/4 - 14 callout) and a 1/2" male BSPP thread on the other (G 1/2 - 14 callout).
Question by: Troy A on Jul 5, 2025, 7:11 AM
got a hose end that’s G 3/4 - 14 and i need to turn it 90 degrees into a G 1/2 - 14 port. is this the right elbow?
Answer by: Customer Support on Jul 7, 2025, 6:23 AM
For that setup, it matches. Side 1 is a male BSPP G 3/4 - 14 with a 3/4 inch size, and Side 2 is a male BSPP G 1/2 - 14 with a 1/2 inch size, built as a 90 degree elbow.
