90* Male Bspp X Male Bspt

Ask A Question

Description & Features

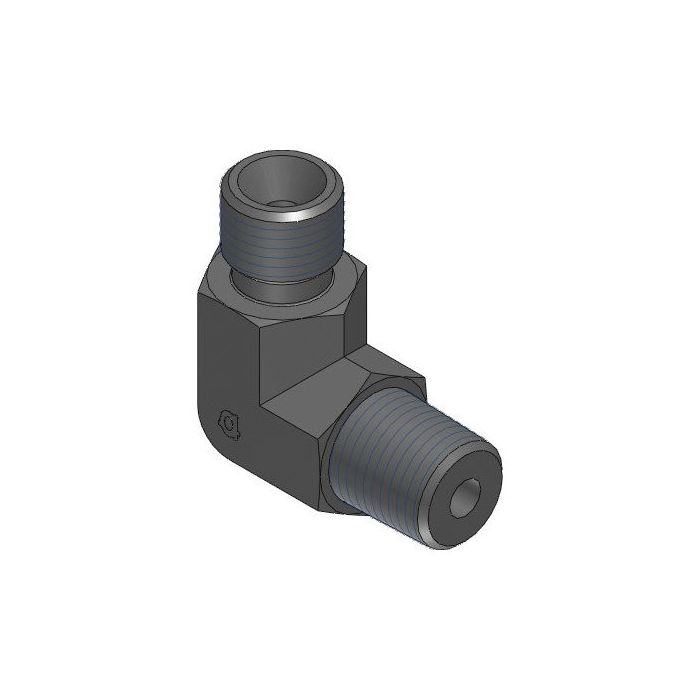

This 90° Elbow Adaptall fitting features a male 3/8" BSPP on one side and a male 3/8" Bspt on the other. The 90* Male BSPP X Male Bspt is constructed from steel for durability in demanding hydraulic applications.

This fitting has a Side 1 Callout of G 3/8 - 19 and Side 2 Callout of R 3/8 - 19. Adaptall Ch Width is 19mm, Adaptall L1 Length is 29mm, and Adaptall L2 Length is 29mm.

SKU: 9057-06-06

Supplier Part Number (MPN): 9057-06-06

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPT
Dimension Standards
BS 5200, DIN EN 10226-1, ISO 1179, ISO 7-1, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9057 Series
Thread Size
3/8-19

Product Questions & Answers (2)

Question by: Steve C on Feb 18, 2026, 12:28 PM
got a hose end that’s G 3/8-19 and the port is R 3/8-19. is this the elbow that bridges those two?
Answer by: Customer Support on Feb 19, 2026, 1:50 PM
It’s a 90 degree elbow with a male 3/8 inch BSPP on one side and a male 3/8 inch BSPT on the other. Side 1 is called out as G 3/8 - 19 and Side 2 is R 3/8 - 19, so it matches those thread callouts.
Question by: Shawn T on Nov 27, 2025, 6:27 PM
both sides on this fitting are male, right? trying to make sure I got the right part before I pull the trigger on ordering
Answer by: Customer Support on Nov 29, 2025, 4:50 PM
Correct on both counts. Side 1 is a male 3/8" BSPP (G 3/8-19) and Side 2 is a male 3/8" BSPT (R 3/8-19). So if your application calls for connecting a BSPP port to a BSPT port at a 90 degree angle, this fitting handles that without needing any additional adapters in between.
