45* Mjic X Mbspp Adj. Elbow

Ask A Question

Description & Features

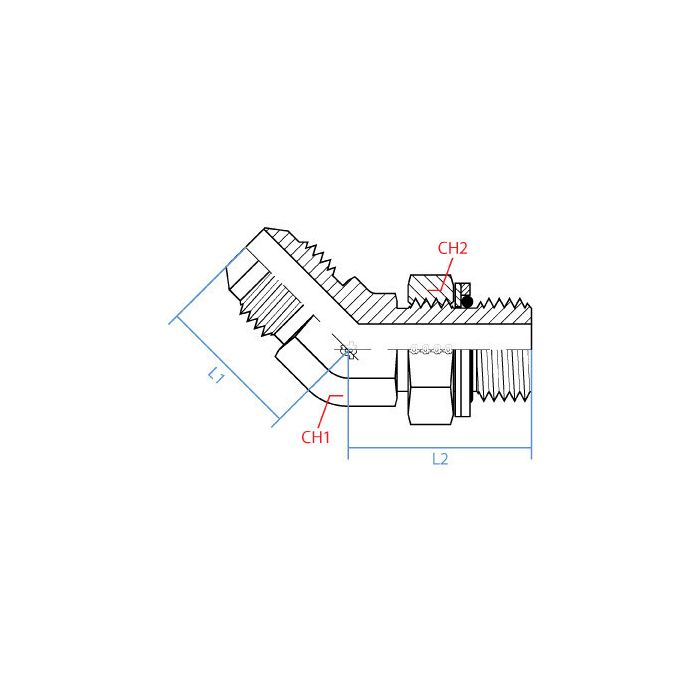

Designed for precision and reliability, this steel 45° elbow connects male JIC and BSPP threads seamlessly. The 7/16 - 20 UNF male JIC on side one and the G 1/8 - 28 male BSPP on side two make this fitting ideal for hydraulic systems requiring secure connections in tight spaces. With a compact L1 length of 20mm and L2 length of 27mm, it fits efficiently into various setups while maintaining robust performance.

The 45* Mjic X Mbspp Adj. Elbow features an adaptable design suitable for numerous industrial applications. Its robust construction ensures durability in high-pressure environments, while the precise 12mm and 14mm channel widths facilitate easy installation and maintenance. This component is a versatile choice for professionals seeking reliable and efficient hydraulic system solutions.

SKU: 9058-04-02

Supplier Part Number (MPN): 9058-04-02

Specifications

Connection Size 2
1/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
4500 psi
Series
9058 Series
Thread Size
7/16-20 x 1/8-28

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Troy B on Feb 24, 2026, 4:40 PM
So, will this elbow fitting work with both JIC and BSPP thread types? Just want to make sure before I order.
Answer by: Customer Support on Feb 26, 2026, 2:38 PM
Yes, it's designed to connect male JIC and BSPP threads. Side one features 7/16 - 20 UNF male JIC, and side two has G 1/8 - 28 male BSPP.
Question by: Ronnie S on May 29, 2025, 1:38 PM
trying to hook a 1/4 jic hose to a 1/8 bspp port, is this the right elbow for that?
Answer by: Customer Support on May 30, 2025, 2:13 PM
For that combo, it matches up: side one is a 7/16-20 UNF male JIC (1/4 inch) and side two is a G 1/8-28 male BSPP (1/8 inch). It is a 45 degree elbow, so it helps when you need to turn the line instead of coming straight out.
Question by: Keith G on Jul 19, 2025, 4:09 PM
fitting's got a 45 degree angle on it, but can you adjust which direction it points once it's threaded in, or is it fixed once you tighten it down?
Answer by: Customer Support on Jul 20, 2025, 9:12 PM
Because it's an adjustable elbow, you can orient the angled end in whatever direction works best for your routing before you lock it down. That's the whole advantage of the adj. style over a fixed elbow. Get it pointed where you need it, then tighten to hold position.
