45* Mjic X Mbspp Adj. Elbow

Description & Features

This steel 45° elbow Adaptall fitting features a 7/16 - 20 UNF JIC male connection on one side and a G 1/4 - 19 BSPP male adjustable connection on the other side, both with a 1/4" size.

The 45* Mjic X Mbspp Adj. Elbow is precisely manufactured to ensure reliable performance in hydraulic applications. This elbow fitting offers versatility and secure connections.

SKU: 9058-04-04

Supplier Part Number (MPN): 9058-04-04

Specifications

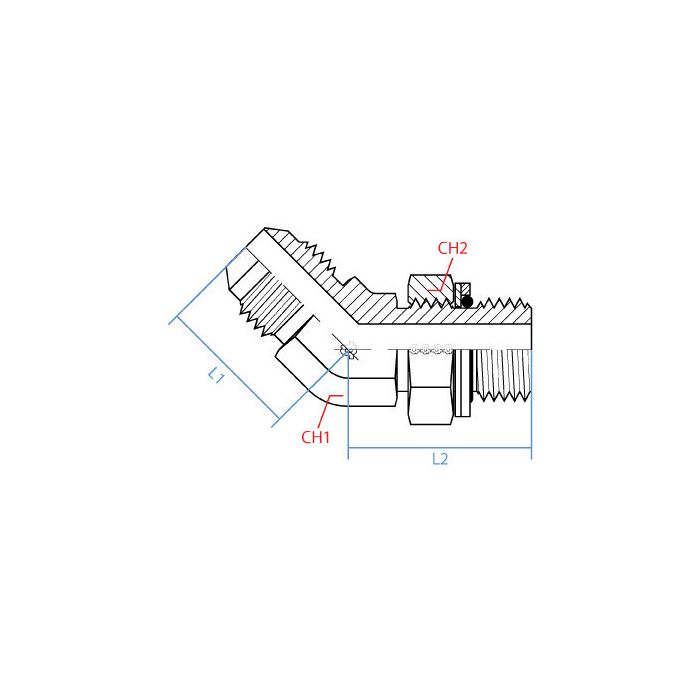

CH1 Width 14mm	CH2 Width 19mm	L1 Length 20mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9058-04-04	Product Weight 0.10 lbs

Product Questions & Answers (1)

Question by: Clint R on Oct 27, 2025, 6:15 PM

Will this fitting hold up okay in a hydraulic system for farm equipment? Just wanna make sure it's durable enough.

Answer by: Customer Support on Oct 29, 2025, 4:43 PM

This steel Adaptall fitting is manufactured to offer reliable performance in hydraulic applications, so it should work well.
