45* Mjic X Mbspp Adj. Elbow

Description & Features

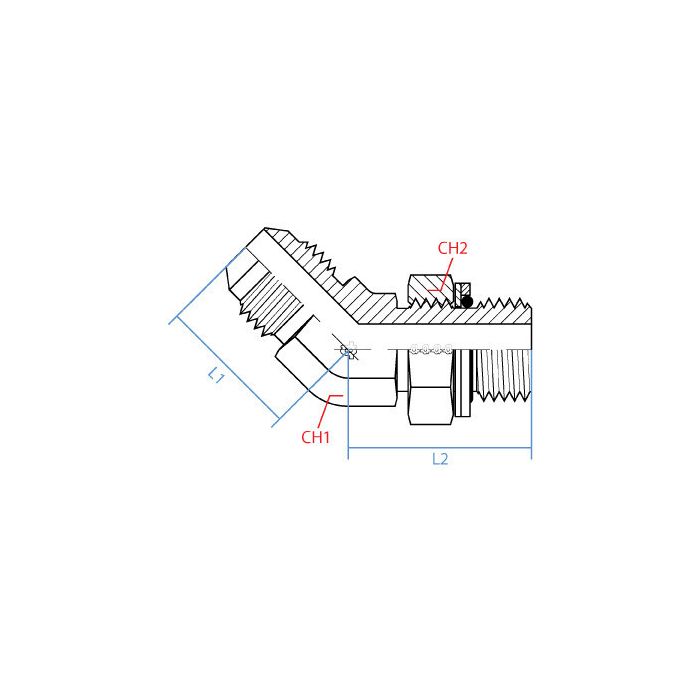

Crafted from durable steel, the 45° Mjic X Mbspp Adj. Elbow is an essential component for hydraulic systems requiring a reliable connection between differing thread types. This adaptable elbow features a 45-degree angle, uniting a 9/16 - 18 UNF JIC male end with a G 3/8 - 19 BSPP male end, both sized at 3/8". Its compact dimensions, with a width of 19mm and 22mm on the two sides, and lengths of 21mm and 32mm, make it suitable for installations in confined spaces.

Designed by Adaptall, a leading name in hydraulic connectors, this product ensures a secure fit and optimal performance in demanding industrial environments. Whether for maintenance or new installations, the 45° Mjic X Mbspp Adj. Elbow offers a precise fit and robust application. Its steel construction assures longevity and resistance to wear, making it an indispensable part of any hydraulic setup.

SKU: 9058-06-06

Supplier Part Number (MPN): 9058-06-06

Specifications

Connection Size 1 9/16 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male Adjustable BSPP	Dimension Standards BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514	Finish Zinc-Plated	Fitting Type 45 deg Elbow	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 4000 psi	Series 9058 Series	Thread Size 9/16-18 x 3/8-19

Product Questions & Answers (1)

Question by: Stan W on Nov 23, 2025, 5:59 PM

Got a machine running JIC fittings on one end and BSPP on the other, does this elbow actually connect both thread types or do I still need an adapter in between?

Answer by: Customer Support on Nov 25, 2025, 2:51 PM

Both thread types are built right into this single fitting. One end is a 9/16-18 UNF JIC male, and the other is a G 3/8-19 BSPP male, so it bridges those two standards without any additional adapter. Both sides are sized at 3/8", and the 45-degree angle lets you redirect the line without fighting a straight fitting into a tight spot.
