45* Mjic X Mbspp Adj. Elbow

Description & Features

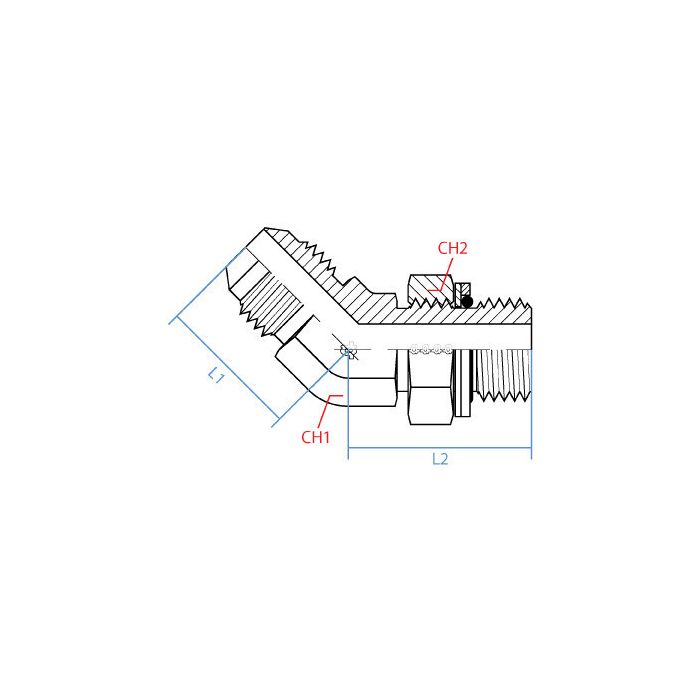

This Adaptall 45° elbow features a male JIC (3/4 - 16 UNF) on Side 1 with a 19mm wrench flat, and a male BSPP (G 3/8 - 19) on Side 2 with a 22mm wrench flat.

The steel 45* Mjic X Mbspp Adj. Elbow has a Side 1 size of 1/2" and Side 2 size of 3/8". Side 1 has a length of 25mm, while Side 2 has a length of 33mm.

SKU: 9058-08-06

Supplier Part Number (MPN): 9058-08-06

Specifications

Connection Size 1 3/4 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male Adjustable BSPP	Dimension Standards BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514	Finish Zinc-Plated	Fitting Type 45 deg Elbow	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 4000 psi	Series 9058 Series	Thread Size 3/4-16, 3/8-19

Product Questions & Answers (1)

Question by: Darryl P on Jan 21, 2026, 9:03 AM

got a line running JIC on one end and BSPP on the other, does this fitting bridge those two thread types at a 45 degree angle?

Answer by: Customer Support on Jan 23, 2026, 6:16 AM

That's what it does. One side is a 3/4-16 UNF male JIC (1/2" size) and the other is a G 3/8-19 male BSPP (3/8" size), and the whole thing sits at a 45 degree bend. So if you're routing a line between a JIC port and a BSPP port and need to change direction a bit, this handles both the thread conversion and the angle in one piece.
