90* Mjic X Mbspp Adj. Elbow

Description & Features

Designed for precision and durability, this 90° Mjic X Mbspp Adjustable Elbow is crafted from high-quality steel to ensure reliable performance in demanding industrial environments. The elbow features a 5/16" M JIC connection on Side 1 with a thread callout of 1/2 - 20 UNF, making it ideal for secure and leak-free connections in hydraulic systems. Side 2 offers a 1/4" M BSPP connection with a G 1/4 - 19 thread, ensuring compatibility with a range of applications.

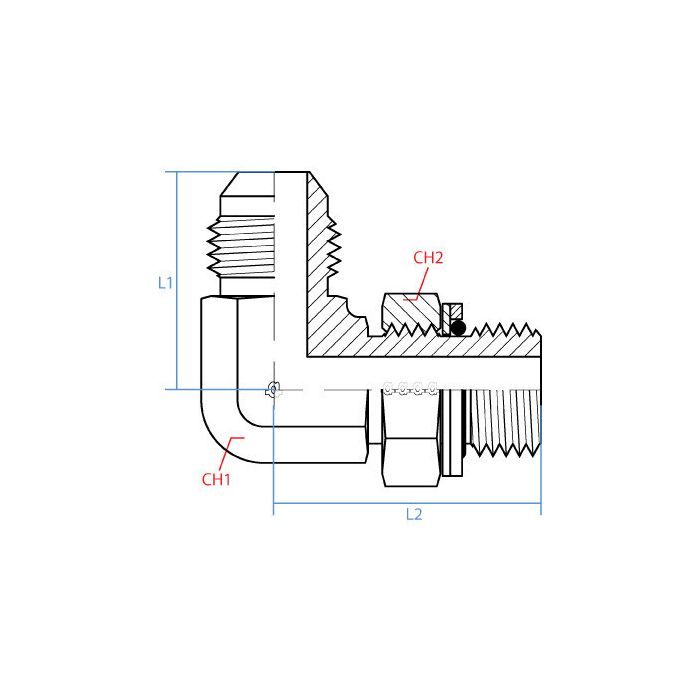

This Adaptall elbow is engineered with a width of 14mm on Side 1 and 19mm on Side 2, complemented by L1 and L2 lengths of 29mm and 25mm, respectively. Its robust construction and precise dimensions make it suitable for high-pressure applications, providing flexibility and adjustability in complex hydraulic layouts.

SKU: 9059-05-04

Supplier Part Number (MPN): 9059-05-04

Specifications

CH1 Width 14mm	CH2 Width 19mm	L1 Length 29mm	L2 Length 25mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-05-04	Product Weight 0.15 lbs

Product Questions & Answers (2)

Question by: Ronnie H on May 31, 2025, 10:46 AM

Hey, will this elbow fitting work with my hydraulic setup if I got a 5/16" JIC on one side and a 1/4" BSPP on the other? Just wanna make sure it's gonna fit right.

Answer by: Customer Support on Jun 1, 2025, 12:45 PM

Yes, this 90-degree elbow is specifically designed with a 5/16" M JIC connection on one side and a 1/4" M BSPP connection on the other to ensure compatibility in such setups.

Question by: Curt O on Feb 3, 2026, 12:38 PM

trying to swap an elbow on a hose, what threads are on each end of this adjustable 90

Answer by: Customer Support on Feb 5, 2026, 6:42 AM

On the JIC side you get a 5/16 inch male with 1/2 - 20 UNF threads, and the other end is a 1/4 inch male BSPP with G 1/4 - 19 threads. It is a 90 degree adjustable elbow, so it’s meant to help you clock the fitting where you need it.
