90*Mjic X Male Bspp Adj Elbow

Ask A Question

Description & Features

This high-quality 90deg; elbow from Adaptall America ensures reliable performance for specialized industry applications. Constructed from durable steel, it supports demanding engineering requirements.

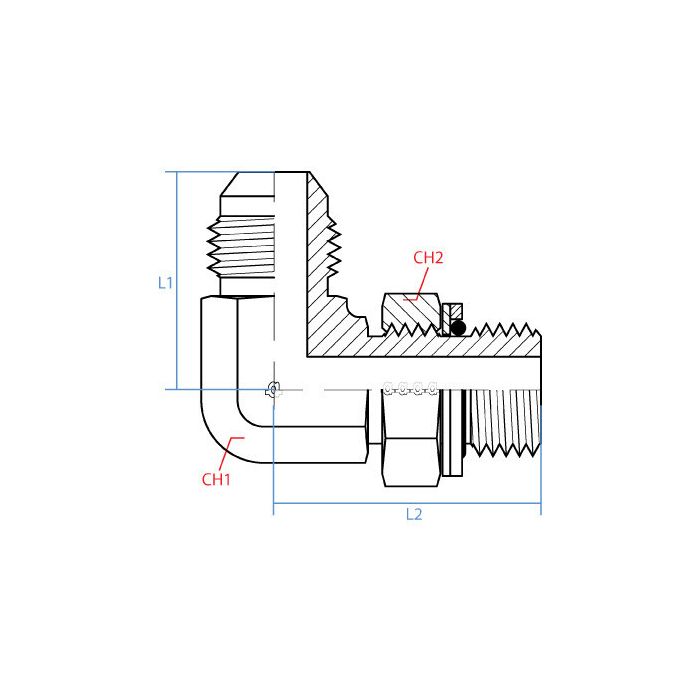

Side 1 features a 9/16 - 18 UNF JIC male fitting, while Side 2 includes a G 1/4 - 19 BSPP male fitting, offering compatibility with various systems. The component dimensions are CH1 width of 14mm, CH2 width of 19mm, L1 length of 29.5mm, and L2 length of 25.6mm, guaranteeing precise connections.

Designed to meet strict standards, this elbow facilitates optimal fluid and air flow while maintaining robust seals without additional thread sealants.

MPN: 9059-06-04

Supplier Part Number: 9059-06-04

Specifications

Connection Size 1
9/16 in
Connection Size 2
1/4 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
6000 psi
Series
9059 Series
Thread Size
9/16-18 x 1/4-19

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Wayne K on Jun 3, 2025, 9:36 AM
got a line running G 1/4 BSPP male on one end and JIC 3/8 on the other, and I need a 90 degree turn in there. this the right piece for that?
Answer by: Customer Support on Jun 5, 2025, 7:28 AM
That setup matches exactly what this fitting handles. Side 1 is a 9/16-18 UNF JIC male at 3/8 inch, and Side 2 is a G 1/4-19 BSPP male at 1/4 inch, with a 90 degree elbow between them. Both ends are male, so make sure your mating ports are female on both sides before ordering.
Question by: Carl C on Feb 6, 2026, 8:55 AM
trying to swap an elbow out, are the ends on this one 9/16-18 JIC male on one side and G 1/4-19 BSPP male on the other?
Answer by: Customer Support on Feb 7, 2026, 5:49 PM
It’s a 90 degree adjustable elbow with a 9/16 - 18 UNF JIC male on Side 1 and a G 1/4 - 19 BSPP male on Side 2.
