90*Mjic X Male Bspp Adj Elbow

Ask A Question

Description & Features

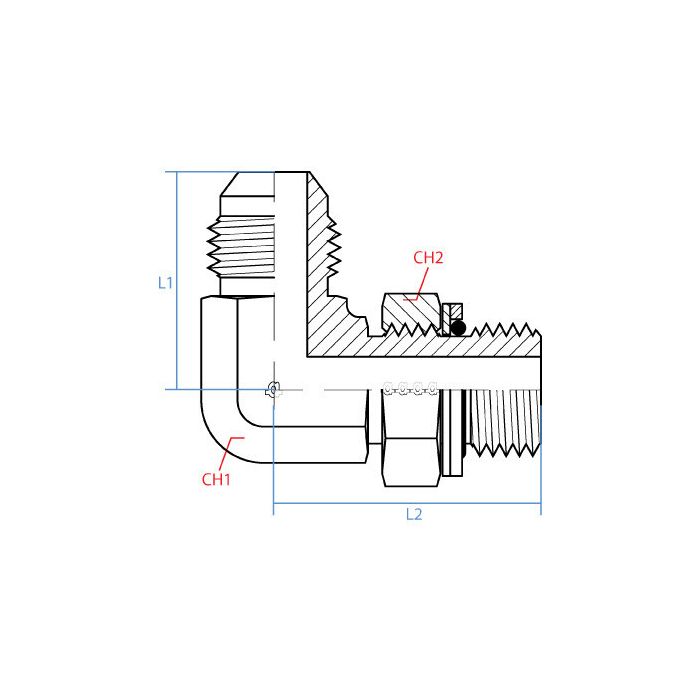

This steel elbow crafted by Adaptall America is designed for precise, secure connections in various industrial applications. It features a 90deg; angle, making it ideal for scenarios with space constraints.

One end of the component includes a 9/16 - 18 UNF male Jic fitting, sized at 3/8", while the other end comprises a G 3/8 - 19 male Bspp fitting, also sized at 3/8". The widths of the connection points are 19mm and 22mm respectively, ensuring a dependable fit.

With a 30mm length on one side and 38mm on the other, this elbow is built to stringent industry specifications, guaranteeing excellent durability in demanding environments.

MPN: 9059-06-06

Supplier Part Number: 9059-06-06

Specifications

Connection Size 1
9/16 in
Connection Size 2
3/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
6000 psi
Series
9059 Series
Thread Size
9/16-18 x 3/8-19

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Shane R on Aug 24, 2025, 5:05 PM
Will this fitting hold up okay in an oily environment, say around a hydraulic pump?
Answer by: Customer Support on Aug 26, 2025, 6:23 AM
Built to stringent industry specifications, this steel elbow is designed for excellent durability, even in demanding environments.
Question by: Carl M on Dec 4, 2025, 6:05 AM
Got a machine running G 3/8 BSPP ports and need to make a 90-degree turn into a JIC line, this the right piece for that?
Answer by: Customer Support on Dec 6, 2025, 6:02 AM
That's what this fitting handles. One end is a male G 3/8-19 BSPP, and the other is a 9/16-18 UNF male JIC in 3/8" size. The 90-degree angle makes it practical when you're working in a tight spot and can't run a straight adapter. Both sides are 3/8", so the flow sizing stays consistent through the connection. Steel construction means it'll hold up in a working industrial environment without babying it.
