90*Mjic X Male Bspp Adj Elbow

Description & Features

This Adaptall 90° elbow features a 1" male JIC side 1 connection and a 1" male BSPP adjustable side 2 connection. The 90*Mjic X Male Bspp Adj Elbow is constructed from durable steel.

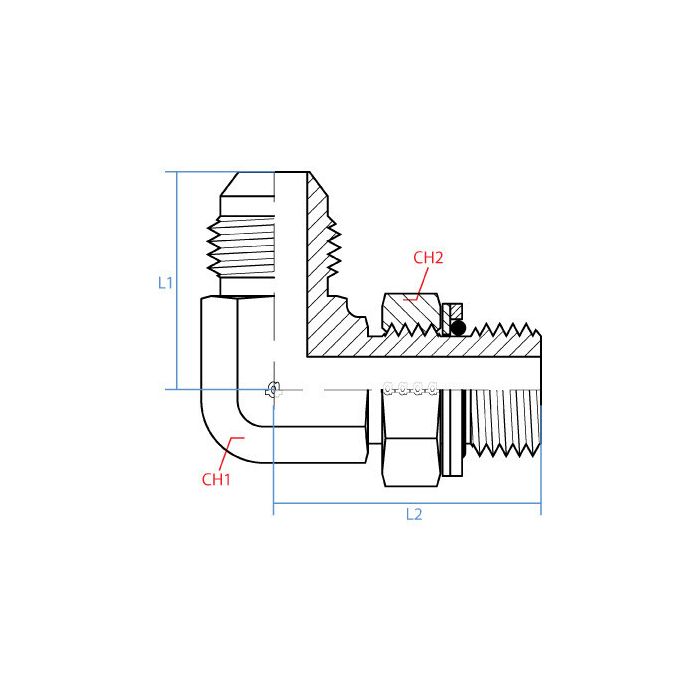

This Adaptall adapter has a side 1 width of 33mm and a side 2 width of 41mm. The L1 length is 52.5mm, and the L2 length is 46.2mm.

SKU: 9059-16-16

Supplier Part Number (MPN): 9059-16-16

Alternate Part Numbers: MI-02116274, MINO-03671J02615

Specifications

Connection Size 2 1 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male Adjustable BSPP	Dimension Standards BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 6000 psi	Series 9059 Series	Thread Size 1-5/16-12 x 1-11

Product Questions & Answers (1)

Question by: Jean M on Jan 22, 2026, 4:20 PM

Will this fitting work to connect a JIC to a BSPP connection, both being 1 inch?

Answer by: Customer Support on Jan 23, 2026, 7:39 PM

This elbow adapter is indeed what you're looking for; it has a 1" JIC male on one side and a 1" BSPP male on the other.
