90* Male Bspp X Female Bspp

Ask A Question

Description & Features

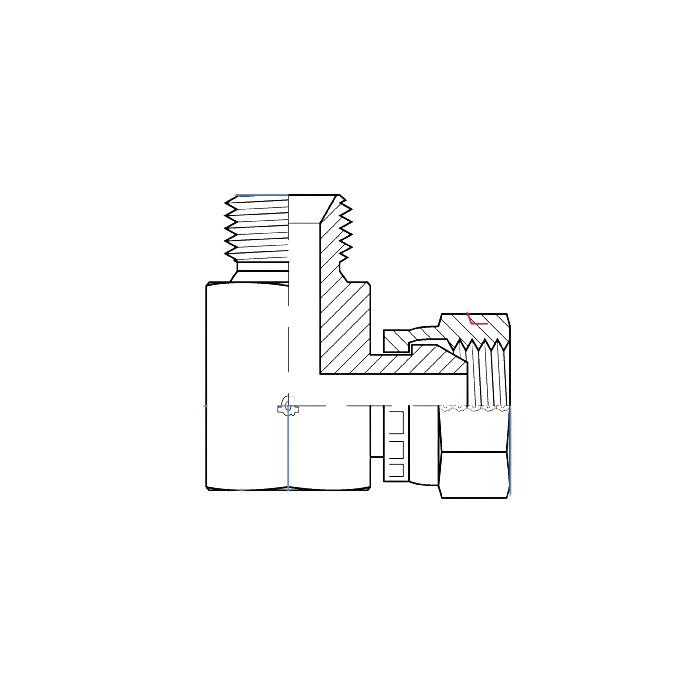

This 90° elbow Adaptall fitting features a male BSPP (British Standard Parallel Pipe) end and a female BSPP end, facilitating a 90-degree connection between hydraulic components.

The steel construction ensures durability and reliability in demanding hydraulic applications. The Adaptall Shape is a 90° Elbow. Side 1 features a G 1 - 11 male BSPP connection with a 1" size, while Side 2 features a G 3/4 - 14 female BSPP connection with a 3/4" size. This 90* Male Bspp X Female Bspp provides a secure and leak-free connection in hydraulic systems.

SKU: 9060-16-12

Supplier Part Number (MPN): 9060-16-12

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
Female BSP Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
9060 Series
Thread Size
1-11 x 3/4-14

Product Questions & Answers (3)

Question by: Pete F on Oct 5, 2025, 11:42 AM
What kind of steel is this elbow made from? Just want to make sure it's tough enough for what I need.
Answer by: Customer Support on Oct 6, 2025, 4:12 PM
The elbow is made from steel to ensure it holds up in demanding hydraulic applications.
Question by: Cindy B on Nov 17, 2025, 5:09 PM
trying to hook a 1 inch bspP male into a 3/4 bspP female but need it to turn the corner, is that what this elbow does?
Answer by: Customer Support on Nov 19, 2025, 12:05 PM
For a right-angle connection, it bridges a G 1 - 11 male BSPP on one side to a G 3/4 - 14 female BSPP on the other, so you can make a 90 degree turn between those two BSPP sizes.
Question by: Scott Y on Feb 11, 2026, 3:43 PM
Got a 1" male BSPP port on a hydraulic block and need to drop down to a 3/4" female BSPP connection at a 90 degree angle, this the right fitting for that?
Answer by: Customer Support on Feb 13, 2026, 6:53 AM
That's what this fitting handles. Side 1 is a 1" male BSPP (G 1 - 11) and Side 2 is a 3/4" female BSPP (G 3/4 - 14), all built into a 90 degree elbow configuration. So you're threading the male end into your 1" port and then accepting a 3/4" male BSPP on the other side. Steel construction throughout, so it holds up fine in working hydraulic environments.
