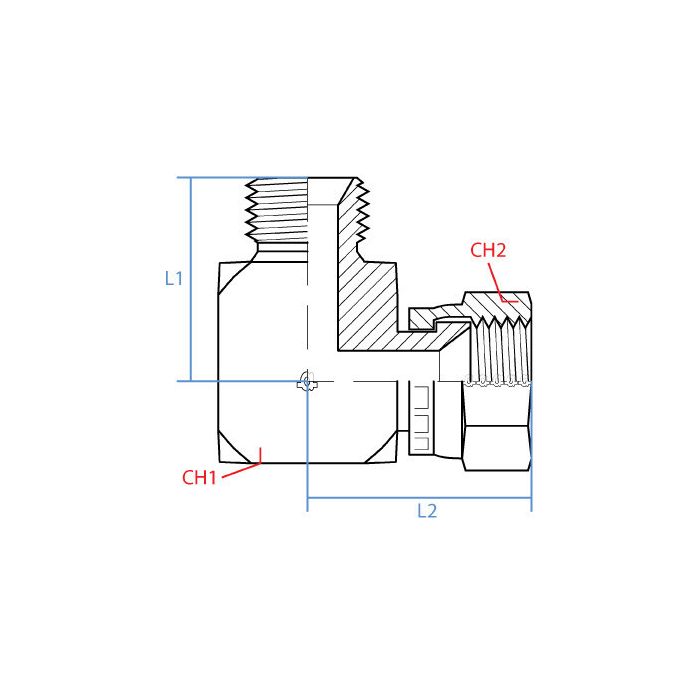

main product photo

90* Male Bspp X Female Jic

Ask A Question

Description & Features

This robust steel 90° elbow adapter is designed for reliable performance in demanding industrial environments. Featuring a male BSPP (British Standard Pipe Parallel) connection on one side and a female JIC (Joint Industry Council) connection on the other, it provides seamless integration into hydraulic systems. The adapter's compact dimensions, with a width of 16mm on side one and 14mm on side two, ensure a snug fit in tight spaces. The G 1/4 - 19 male connection and 7/16 - 20 UNF female connection cater to a range of applications, enhancing the versatility of this component.

Engineered by Adaptall, this steel adapter delivers durability and resistance to wear, ensuring a long service life. The precise L1 length of 24mm and L2 length of 23mm underscore its compact design, making it ideal for use in high-pressure hydraulic systems where space is at a premium. This 90* Male BSPP X Female JIC adapter is an essential component for seamless hydraulic connections, providing both strength and adaptability.

SKU: 9061-04-04

Supplier Part Number (MPN): 9061-04-04

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
7/16 in
Connection Type
Female JIC Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female JIC Swivel
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
9061 Series
Thread Size
7/16-20 x 1/4-19

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
90* Male Bspp X Female Jic

9061-06-06

3/8 in

9/16 in

9/16-18 x 3/8-19

Steel Adapter, 1/2-14 Male BSPP (British Parallel) To 3/4-16 Female JIC 37 deg Flare Swivel, 90 deg Elbow

9061-08-08 Steel Male BSPP To Female JIC 90 Elbow

1/2 in

3/4 in

3/4-16 x 1/2-14

Product Questions & Answers (1)

Question by: Howard C on Nov 24, 2025, 5:58 PM
Got a line running BSPP on one end and JIC on the other, will this fitting bridge that gap without needing extra adapters in between?
Answer by: Customer Support on Nov 26, 2025, 4:57 PM
Yeah, that's exactly what this one's built for. The male side is G 1/4-19 BSPP and the female side is 7/16-20 UNF JIC, so it connects those two thread standards in a single piece. No stacking adapters, no extra fittings. Both sides are 1/4" nominal size, and the 90-degree elbow angle means you can redirect the line right at the connection point if your routing calls for it.
