90* Mjic X Mbspt Elbow

Ask A Question

Description & Features

This 90° elbow fitting features a 1/4" JIC male connection on one side and a 1/8" BSPT male connection on the other. The JIC side has a 7/16 - 20 UNF callout.

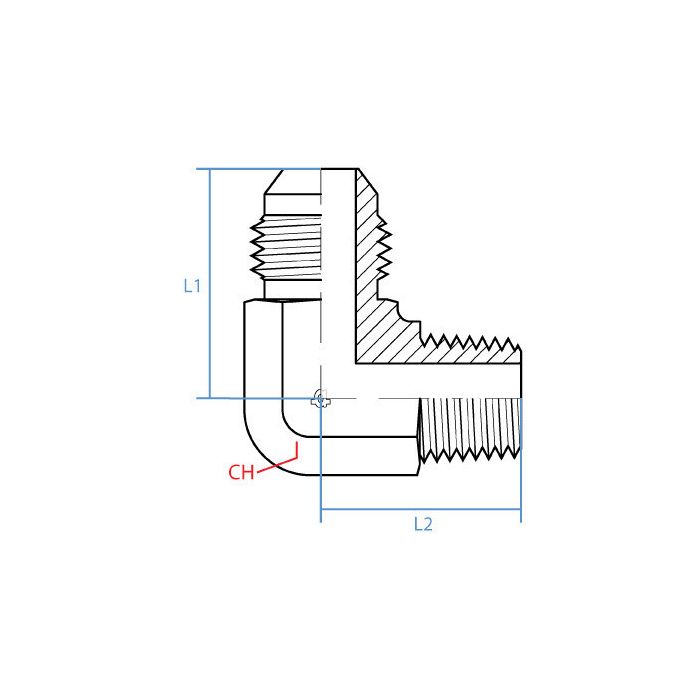

The 90* Mjic X Mbspt Elbow is constructed from steel, offering durability for hydraulic applications. With an Adaptall Ch Width of 12mm, Adaptall L1 Length of 19.8mm and Adaptall L2 Length of 18.5mm, this elbow ensures secure and efficient connections.

SKU: 9063-04-02

Supplier Part Number (MPN): 9063-04-02

Specifications

Connection Size 2
1/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
12 mm
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
4500 psi
Series
9063 Series
Thread Size
7/16-20 x 1/8-28

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Wes R on Dec 2, 2025, 9:44 PM
got a hose end thats 1/4 jic male, will this elbow thread right onto it?
Answer by: Customer Support on Dec 4, 2025, 8:48 AM
The JIC side on this elbow is a 1/4 inch male JIC with a 7/16-20 UNF thread callout, so it matches up with a 1/4 JIC female swivel.
Question by: Danny T on Aug 9, 2025, 6:52 AM
what's the thread spec on the JIC side of this fitting, the 7/16-20 UNF? just want to make sure it'll mate up right before i order
Answer by: Customer Support on Aug 11, 2025, 8:11 AM
Correct on both counts. The JIC side runs a 7/16-20 UNF thread, and the connection type is a standard male JIC at 1/4". If your hose end or port is spec'd to that same callout, you're good to go.
Question by: Merle H on Oct 16, 2025, 6:48 PM
Will this fitting hold up in a hydraulic system on a farm tractor?
Answer by: Customer Support on Oct 18, 2025, 6:18 AM
Constructed from steel, this elbow fitting offers good durability for demanding hydraulic applications.
