90* Mjic X Mbspt Elbow

Description & Features

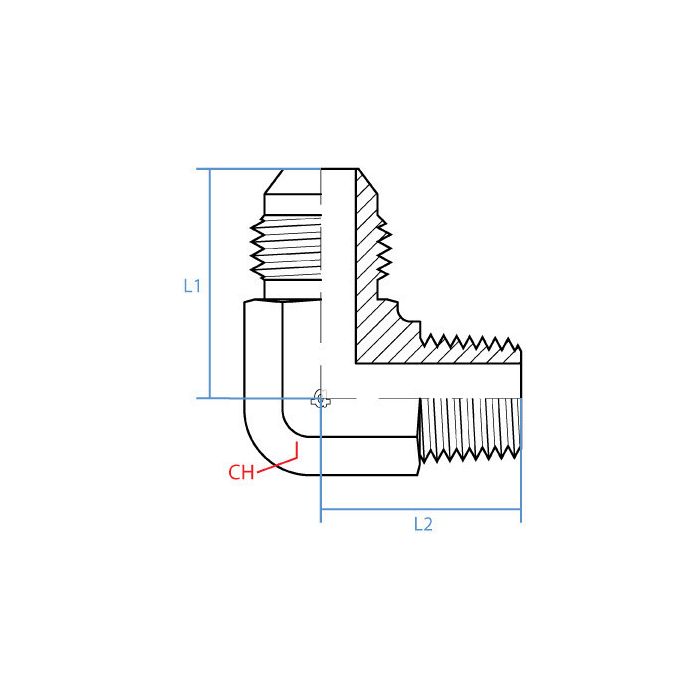

This 90° elbow fitting, constructed from durable steel, is engineered for robust industrial applications. It features a male JIC (Joint Industry Council) connection on one end, sized at 5/16" with a 1/2 - 20 UNF thread, and a male BSPT (British Standard Pipe Taper) connection on the opposite end, sized at 1/8" with an R 1/8 - 28 thread. The compact design, with an Adaptall Ch Width of 16mm, L1 Length of 19mm, and L2 Length of 23mm, ensures seamless integration into hydraulic systems where space is a premium.

The product is specifically designed to facilitate efficient directional changes in hydraulic fluid flow, making it ideal for use in a variety of industrial environments. The 90* Mjic X Mbspt Elbow offers reliable performance and compatibility with systems requiring precise connection standards.

SKU: 9063-05-02

Supplier Part Number (MPN): 9063-05-02

Specifications

Brand adapt-all	Connection Size 1 5/16 in	Connection Size 2 1/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 16 mm	Material Steel	Material Construction Carbon Steel	Series 9063 Series	Thread Size 1/2-20 x 1/8-28

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
9063-04-02		1/8 in	7/16-20 x 1/8-28
9063-04-04		1/4 in	7/16-20 x 1/4-19
9063-05-04	1/2 in	1/4 in	1/2-20 x 1/4-19
9063-06-04	9/16 in	1/4 in	9/16-18 x 1/4-19
9063-06-06	9/16 in	3/8 in	9/16-18 x 3/8-19
9063-06-08	9/16 in	1/2 in	1/2-14 x 9/16-18
9063-08-06	3/4 in	3/8 in	3/4-16, 3/8-19
9063-08-08	3/4 in	1/2 in	3/4-16 x 1/2-14
9063-20-20		1-1/4 in	1-1/4-11 x 1-5/8-12

Product Questions & Answers (3)

Question by: Phil S on Jan 27, 2026, 2:13 PM

got a tight spot on a hose run, what are the thread sizes on each end of this 90 elbow?

Answer by: Customer Support on Jan 29, 2026, 6:57 AM

One side is a male JIC in 5/16 inch with a 1/2 - 20 UNF thread, and the other side is a male BSPT in 1/8 inch with an R 1/8 - 28 thread.

Question by: Tony K on Jan 27, 2026, 2:51 PM

got a spot on a piece of equipment where the line needs to make a hard turn but there ain't much room to work with, what are the dimensions on this thing?

Answer by: Customer Support on Jan 28, 2026, 9:38 PM

Pretty compact fitting overall. The wrench flat width comes in at 16mm, so it won't hog a lot of space side to side. Length-wise, you're looking at 19mm on one side and 23mm on the other. For tight quarters where a straight adapter just won't cut it, that 90-degree profile tends to be a real practical solution.

Question by: Curt T on Mar 5, 2026, 8:05 AM

What's the width of this elbow fitting across the flats? Just need to make sure my wrench will fit.

Answer by: Customer Support on Mar 7, 2026, 6:19 AM

The Adaptall Ch Width on this elbow is 16mm, so you can plan your wrench size accordingly.
