90* Mjic X Mbspt Elbow

Ask A Question

Description & Features

This 90° elbow is constructed of steel and features a Male JIC (MJIC) side 1 connection to Male BSPT (MBSPT) side 2 connection.

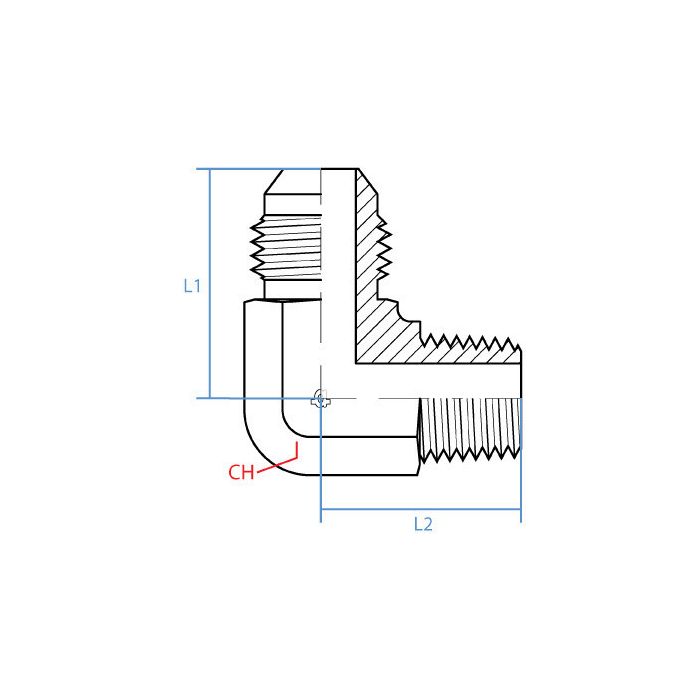

The Adaptall 90* Mjic X Mbspt Elbow’s side 1 is a 3/8" JIC with a 9/16 - 18 UNF callout. Side 2 is a 1/4" BSPT with an R 1/4 - 19 callout. It has an Adaptall Ch Width of 14mm, Adaptall L1 Length of 26mm, and Adaptall L2 Length of 24.8mm.

SKU: 9063-06-04

Supplier Part Number (MPN): 9063-06-04

Specifications

Connection Size 1
9/16 in
Connection Size 2
1/4 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
4000 psi
Series
9063 Series
Thread Size
9/16-18 x 1/4-19

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Connie M on Apr 26, 2025, 9:57 AM
Got a hydraulic line coming off a British-made pump with a 1/4 BSPT male port, and I need to tie into a 3/8 JIC male fitting on the other end. This elbow gonna work for that, or am I barkin up the wrong tree?
Answer by: Customer Support on Apr 27, 2025, 8:46 PM
That setup matches exactly what this elbow handles. One end is a 3/8" Male JIC with a 9/16-18 UNF thread, and the other is a 1/4" Male BSPT with an R 1/4-19 thread. Both sides are male, so you'd need female counterparts on each end of your line. If your pump port and hose fitting are female on both sides, this elbow drops right in between them.
Question by: Glen M on Jun 13, 2025, 5:13 PM
Will this elbow fitting work with standard JIC and BSPT connections, or are there any special requirements?
Answer by: Customer Support on Jun 15, 2025, 12:08 PM
This 90-degree elbow is designed to adapt a 3/8" Male JIC (MJIC) to a 1/4" Male BSPT (MBSPT) connection.
Question by: Dustin C on Apr 28, 2025, 8:51 AM
trying to swap a fitting out, is this elbow the one that’s 3/8 JIC male on one end and 1/4 BSPT male on the other?
Answer by: Customer Support on Apr 29, 2025, 6:19 PM
You’ve got the right style if you need a steel 90 degree elbow with a male 3/8 inch JIC on side 1 (9/16-18 UNF) and a male 1/4 inch BSPT on side 2 (R 1/4-19).
