90* Mjic X Mbspt Elbow

Description & Features

Designed for directional changes in hydraulic line routing, this 90-degree steel elbow connects a 3/8" Male JIC fitting (9/16-18 UNF thread) to a 3/8" Male BSPT fitting (R 3/8-19 thread). The 90* Mjic X Mbspt Elbow is manufactured by Adaptall and is well suited for applications where JIC and BSPT standards must interface within the same hydraulic circuit.

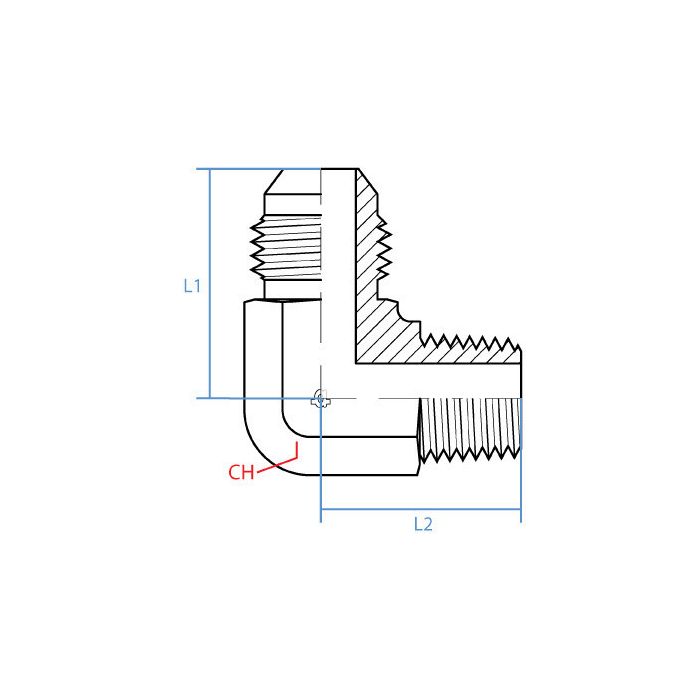

Constructed from steel, the fitting measures 27.3mm on both the L1 and L2 lengths, with a 19mm ch width. The male-to-male configuration and 90-degree elbow geometry make it a practical solution for tight-space installations requiring a perpendicular change in flow direction between JIC and BSPT-threaded ports.

SKU: 9063-06-06

Supplier Part Number (MPN): 9063-06-06

Specifications

Brand adapt-all	Connection Size 1 9/16 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 9063 Series	Thread Size 9/16-18 x 3/8-19

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
9063-04-02		1/8 in	7/16-20 x 1/8-28
9063-04-04		1/4 in	7/16-20 x 1/4-19
9063-05-02	5/16 in	1/8 in	1/2-20 x 1/8-28
9063-05-04	1/2 in	1/4 in	1/2-20 x 1/4-19
9063-06-04	9/16 in	1/4 in	9/16-18 x 1/4-19
9063-06-08	9/16 in	1/2 in	1/2-14 x 9/16-18
9063-08-06	3/4 in	3/8 in	3/4-16, 3/8-19
9063-08-08	3/4 in	1/2 in	3/4-16 x 1/2-14
9063-20-20		1-1/4 in	1-1/4-11 x 1-5/8-12

Product Questions & Answers (2)

Question by: Ross G on Sep 26, 2025, 11:15 AM

got a piece of equipment with a BSPT port and the hydraulic line coming off it has a JIC end on it, will this elbow let me tie them together without any adapters in between?

Answer by: Customer Support on Sep 28, 2025, 6:22 AM

That's exactly what it's built for. One end is a 3/8" Male JIC running a 9/16-18 UNF thread, and the other side is a 3/8" Male BSPT on an R 3/8-19 thread. Both are male, so you're threading directly into female ports on each side. No additional adapters needed to bridge those two standards together.

Question by: Connie H on Jan 3, 2026, 7:09 AM

trying to hook a jic hose end to a bspt port, is this the right elbow for that?

Answer by: Customer Support on Jan 4, 2026, 9:40 PM

For tying the two standards together, it gives you a 3/8 inch Male JIC on one side with 9/16-18 UNF threads and a 3/8 inch Male BSPT on the other side with R 3/8-19 threads, all in a 90 degree elbow.
