90* Mjic X Mbspt Elbow

Description & Features

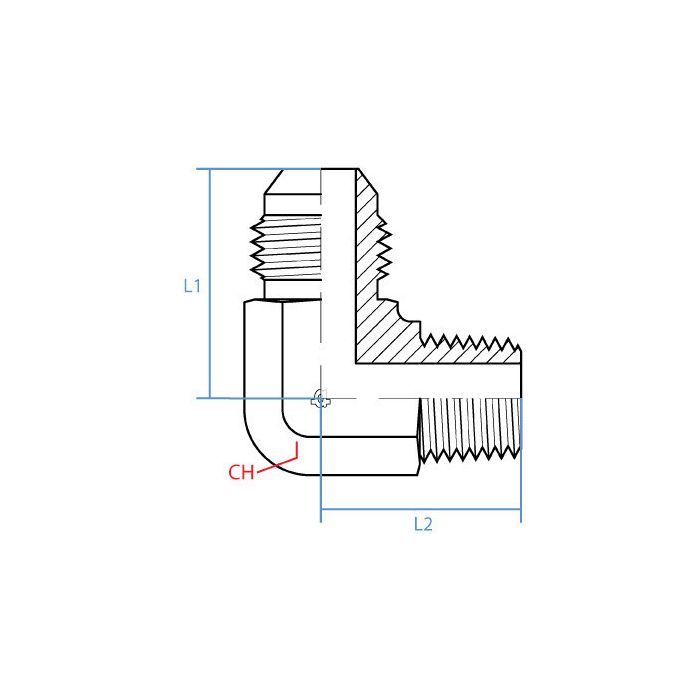

This 90° elbow fitting is expertly designed for hydraulic systems, featuring a robust steel construction that ensures durability and reliability. The fitting connects a male JIC (Joint Industry Council) thread size of 9/16 - 18 UNF on one side to a male BSPT (British Standard Pipe Taper) thread size of R 1/2 - 14 on the other, making it versatile for various industrial applications. Its compact dimensions, with an L1 and L2 length of 33.3mm and a channel width of 22mm, provide a seamless fit in tight spaces without compromising performance.

Manufactured by Adaptall, this component is ideal for systems requiring a secure and efficient connection between different thread types. By integrating this fitting, you can maintain the integrity and efficiency of your hydraulic systems, particularly in environments where space and reliability are critical. The steel material ensures it can withstand demanding conditions, making it a preferred choice for industrial settings.

SKU: 9063-06-08

Supplier Part Number (MPN): 9063-06-08

Specifications

CH Width 22mm	L1 Length 33.3mm	L2 Length 33.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9063-06-08	Product Weight 0.25 lbs

Product Questions & Answers (3)

Question by: Dwight B on Mar 10, 2026, 5:04 PM

trying to hook a 3/8 JIC hose up to a 1/2 BSPT port, is this the right elbow for that?

Answer by: Customer Support on Mar 11, 2026, 5:38 PM

For that kind of mix-and-match connection, this elbow is set up with a male JIC 9/16-18 UNF on one side (3/8 JIC size) and a male BSPT R 1/2-14 on the other side (1/2 BSPT size), with a 90 degree bend between them.

Question by: Jean W on Jun 13, 2025, 6:42 AM

Got a piece of equipment running BSPT ports and the hydraulic line coming off it has a JIC end on it, does this fitting bridge that gap, or am I lookin at the wrong part?

Answer by: Customer Support on Jun 15, 2025, 6:49 AM

That's exactly the gap this fitting covers. One end is a 9/16-18 UNF male JIC thread, the other is an R 1/2-14 male BSPT taper thread. Both ends are male, so you'd need female JIC and female BSPT ports on whatever you're connecting to. If your equipment has those, you're looking at the right part.

Question by: Joyce K on Apr 21, 2025, 11:08 AM

Will this elbow hold up if its gonna be used outdoors where it gets rained on?

Answer by: Customer Support on Apr 23, 2025, 6:47 AM

The steel construction of this elbow is designed to offer good durability in demanding conditions, so it should be suitable for outdoor use where it might get wet.
