90* Mjic X Mbspt Elbow

Description & Features

This steel 90° elbow fitting features a 1/2" JIC male end to a 3/8" BSpt male end. The JIC side has a 3/4 - 16 UNF thread callout, while the BSpt side has a R 3/8 - 19 thread callout.

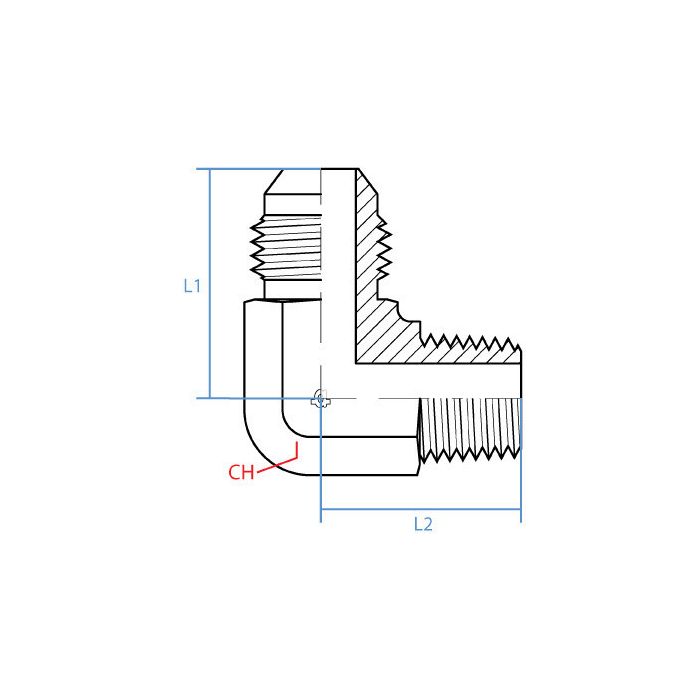

The Adaptall 90* Mjic X Mbspt Elbow is constructed of durable steel with a 19mm wrench flat. The L1 length is 31.3mm and the L2 length is 31mm.

SKU: 9063-08-06

Supplier Part Number (MPN): 9063-08-06

Specifications

Connection Size 1 3/4 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 4000 psi	Series 9063 Series	Thread Size 3/4-16, 3/8-19

Product Questions & Answers (1)

Question by: Rod C on Jun 8, 2025, 10:50 AM

trying to swap a hose end over, is this elbow the one that goes from 1/2 JIC male to 3/8 BSPT male?

Answer by: Customer Support on Jun 10, 2025, 6:37 AM

It is a 90 degree steel elbow with a 1/2 inch JIC male on one side and a 3/8 inch BSPT male on the other. The thread callouts are 3/4 - 16 UNF on the JIC end and R 3/8 - 19 on the BSPT end.
