45* Mjic X Mbspt Elbow

Ask A Question

Description & Features

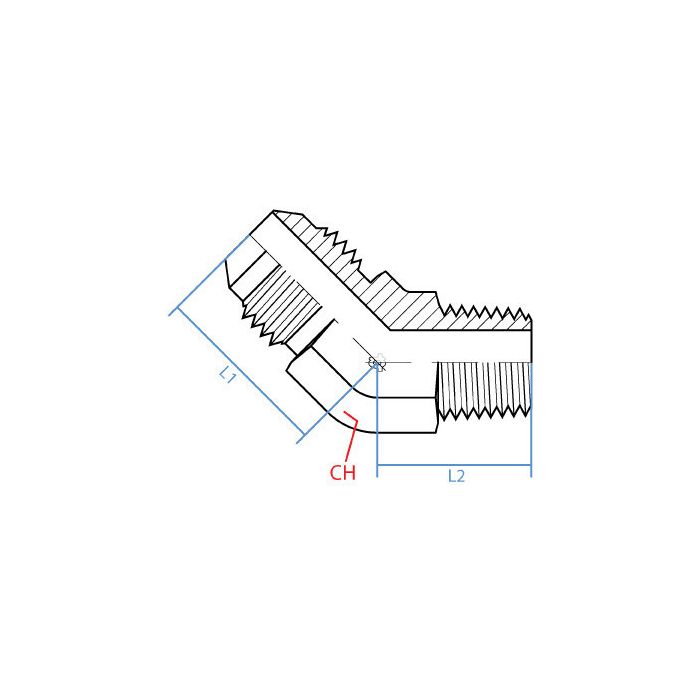

Constructed from durable steel, the 45° Mjic X Mbspt Elbow is designed for robust and reliable hydraulic connections. This fitting features a 7/16 - 20 UNF male JIC connection on one side and an R 1/8 - 28 male BSPT connection on the other, making it a versatile choice for various industrial applications. The compact design includes an Adaptall L1 length of 23.5mm and an L2 length of 20mm, ensuring a snug fit in constrained spaces.

Adaptall's precision engineering is evident in this elbow's 12mm width, which provides optimal performance without compromising strength. The 45° angle facilitates smoother fluid transitions, reducing potential pressure drops and enhancing system efficiency. This elbow is ideal for integration into complex hydraulic systems where space and reliability are critical considerations.

SKU: 9064-04-02

Supplier Part Number (MPN): 9064-04-02

Specifications

Brand
adapt-all
Connection Size 2
1/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
12 mm
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
4500 psi
Series
9064 Series
Thread Size
7/16-20 x 1/8-28

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
45* Mjic X Mbspt Elbow

9064-04-04

1/4 in

7/16-20 x 1/4-19

45* Mjic X Mbspt Elbow

9064-06-04

9/16 in

1/4 in

9/16-18 x 1/4-19

45* Mjic X Mbspt Elbow

9064-08-08

3/4 in

1/2 in

3/4-16 x 1/2-14

Product Questions & Answers (1)

Question by: Jerry W on Aug 25, 2025, 9:12 AM
got a hose end thats 1/4 jic male, will this elbow match up to it?
Answer by: Customer Support on Aug 26, 2025, 1:25 PM
On the JIC side, you are looking at a 7/16-20 UNF male JIC connection, which is the standard thread for 1/4 inch JIC. Since this elbow is male on that end, it mates with a female 1/4 inch JIC swivel.
