45* Mjic X Mbspt Elbow

Description & Features

This 45° elbow features a MJIC (Male JIC) to MBSPT (Male BSPT) connection, facilitating a secure and reliable link between dissimilar thread types. Constructed from durable steel, this Adaptall fitting is designed for robust performance in demanding hydraulic environments. The MJIC side features a 7/16 - 20 UNF thread, while the MBSPT side utilizes an R 1/4 - 19 thread.

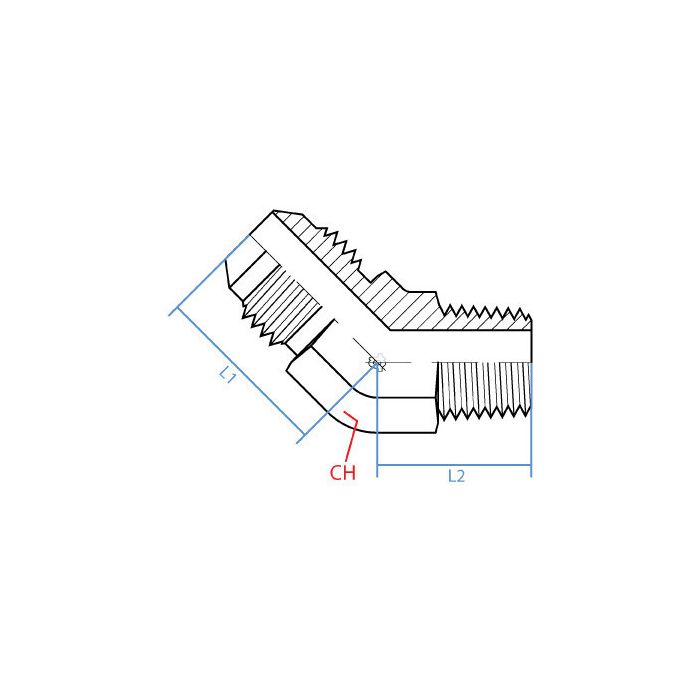

With a Side 1 (MJIC) size of 1/4" and a Side 2 (BSPT) size of 1/4", this 45* Mjic X Mbspt Elbow offers versatility in connecting various hydraulic components. Its compact design, with an Adaptall L1 length of 20.5mm and an Adaptall L2 length of 21mm, allows for installation in tight spaces, while the 14mm Adaptall Ch Width ensures ease of tightening.

SKU: 9064-04-04

Supplier Part Number (MPN): 9064-04-04

Specifications

Connection Size 2 1/4 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Finish Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 14 mm	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 4500 psi	Series 9064 Series	Thread Size 7/16-20 x 1/4-19

Product Questions & Answers (1)

Question by: Vince R on Mar 7, 2026, 12:48 PM

thread sizes on both ends match up here, 7/16-20 UNF on the JIC side and R 1/4-19 on the BSPT side?

Answer by: Customer Support on Mar 9, 2026, 6:03 AM

that's correct on both counts. The JIC end runs a 7/16-20 UNF thread and the BSPT end is R 1/4-19. Both sides are 1/4" nominal size, so you're working with a true 1/4" to 1/4" cross-thread adapter in a 45-degree elbow configuration.
