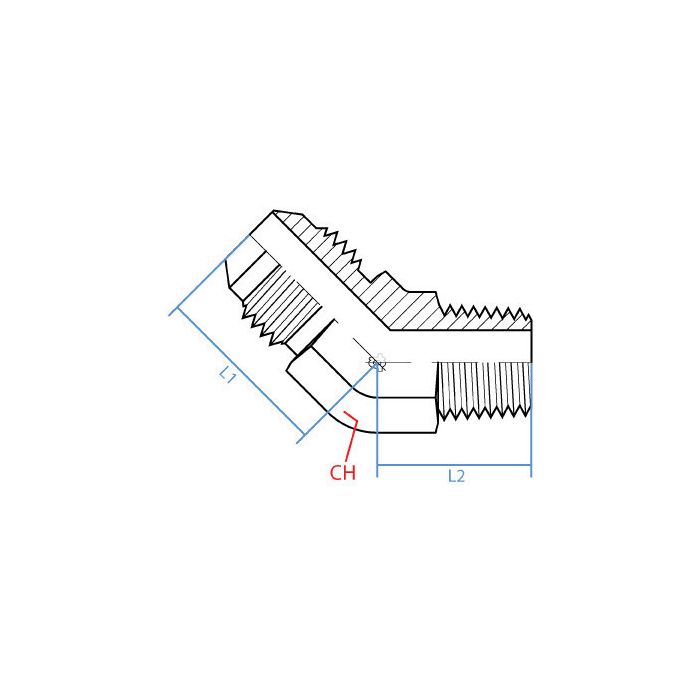

main product photo

45* Mjic X Mbspt Elbow

Ask A Question

Description & Features

Constructed from durable steel, this 45° elbow fitting is designed to facilitate efficient fluid transfer in industrial hydraulic systems. Featuring a male JIC connection on Side 1 with a 3/4 - 16 UNF thread and a male BSPT connection on Side 2 with an R 1/2 - 14 thread, it ensures a secure fit for high-pressure applications. The compact design includes an Adaptall L1 length of 24mm and an L2 length of 26.8mm, making it suitable for tight installation spaces.

Ideal for use in various industrial settings, the 45* Mjic X Mbspt Elbow offers versatility and reliability. Its 1/2" size on both sides allows for seamless integration with compatible hydraulic components, ensuring optimal performance. The 22mm wrench width facilitates easy installation and maintenance, while the robust construction guarantees longevity and resistance to wear.

SKU: 9064-08-08

Supplier Part Number (MPN): 9064-08-08

Specifications

Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
4000 psi
Series
9064 Series
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Jean E on Oct 17, 2025, 1:09 PM
Trying to swap a straight fitting for a 45, are the threads on this one 3/4-16 UNF on the JIC side and R 1/2-14 on the BSPT side?
Answer by: Customer Support on Oct 18, 2025, 3:23 PM
For fit, Side 1 is a male JIC with 3/4 - 16 UNF threads, and Side 2 is a male BSPT with an R 1/2 - 14 thread. Both ends are listed as 1/2 inch size.
Question by: Danny H on Apr 2, 2026, 9:05 AM
Will this fitting work with standard hydraulic setups?
Answer by: Customer Support on Apr 4, 2026, 7:58 AM
This elbow is designed to integrate into industrial hydraulic systems, featuring a male JIC connection and a male BSPT connection for a secure fit in high-pressure applications.
