90* Male Jic X Male Bspp

Ask A Question

Description & Features

This 90° elbow Adaptall fitting features a male JIC (3/4 - 16 UNF) on one side and a male BSPP (G 1/2 - 14) on the other, both with a 1/2" size. This 90* Male JIC X Male BSPP is manufactured from steel.

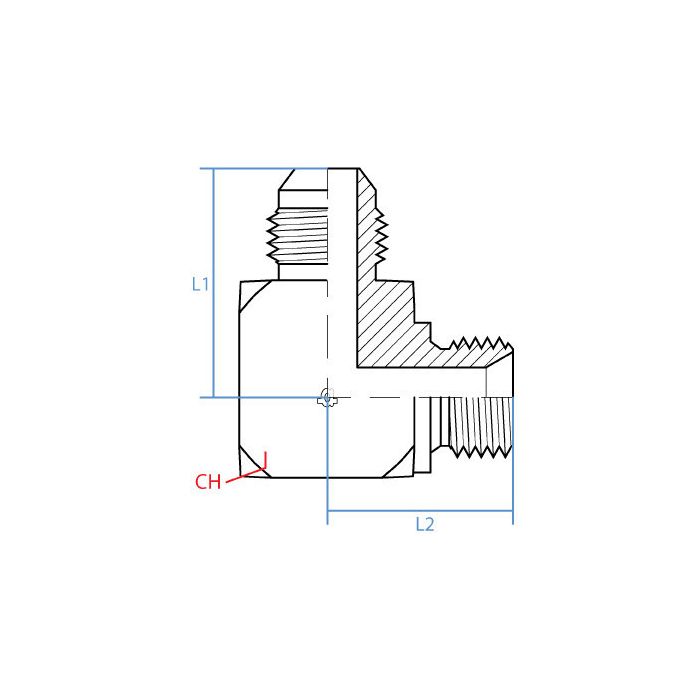

This Adaptall fitting has a wrench flat width of 22mm, a L1 length of 32mm, and a L2 length of 30mm.

SKU: 9065-08-08

Supplier Part Number (MPN): 9065-08-08

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9065 Series
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (1)

Question by: Bobby S on May 31, 2025, 5:23 PM
Will this fitting work to connect something with a JIC fitting to a BSPP fitting?
Answer by: Customer Support on Jun 2, 2025, 2:27 PM
Absolutely, that's exactly what it's for. It's got a male JIC on one side and a male BSPP on the other, both sized at 1/2".
