Male Jic X Male Metric Thread

Description & Features

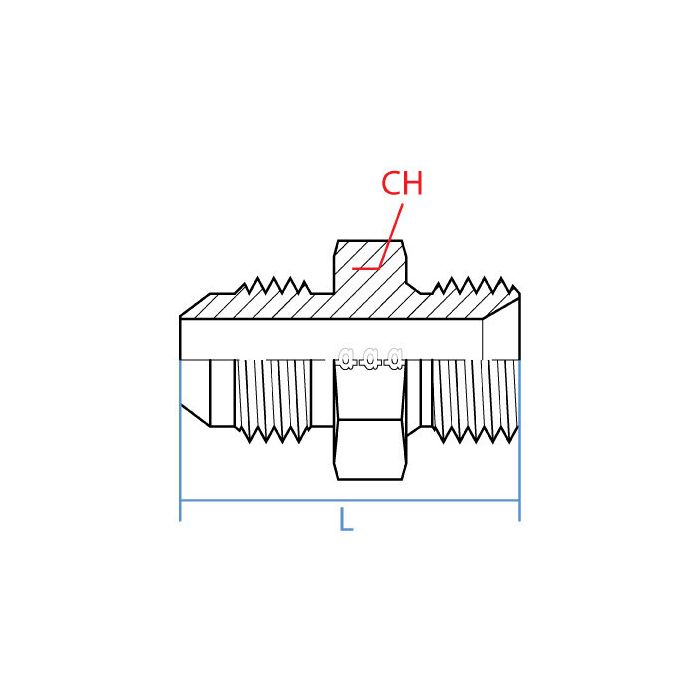

This straight Adaptall fitting connects male JIC and male metric threads. It features a 3/4" Side 1 JIC male end with a 1-1/16 - 12 UN callout and a 27X1.5 Side 2 metric male end with a M27 X 1.5 callout. The Male Jic X Male Metric Thread fitting is constructed from steel for durability in demanding hydraulic applications.

SKU: 9067-12-27X1.5

Supplier Part Number (MPN): 9067-12-27X1.5

Specifications

Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 32 mm	Material Steel	Material Construction Carbon Steel	Series 9067 Series	Thread Size 1-1/16-12 x M27x1.5

Product Questions & Answers (2)

Question by: Janice C on Apr 16, 2025, 2:09 PM

Got a metric port on a pump housing and need to run a JIC line off it, does this fitting do that in one shot or am I still gonna need an adapter in between?

Answer by: Customer Support on Apr 18, 2025, 6:55 AM

One fitting handles the whole transition. One end threads into your metric port using an M27 x 1.5 male thread, and the other end connects directly to a 3/4 inch JIC male line using a 1-1/16-12 UN thread. No additional adapters needed between the two connections.

Question by: Warren E on Oct 2, 2025, 6:43 AM

trying to hook a JIC line up to a metric port. is this the straight adapter with 3/4" JIC on one side and M27x1.5 on the other?

Answer by: Customer Support on Oct 3, 2025, 7:30 PM

For connecting those two thread types in a straight run, this fitting matches that setup. Side 1 is a male JIC, 3/4 inch size with a 1-1/16 - 12 UN callout, and Side 2 is a male metric with an M27 x 1.5 callout.
