Male Jic X Male Metric W/Seal

Description & Features

Crafted by Adaptall America, this connector stands out for its robust steel construction and straight design. The Male Jic X Male Metric W/Seal features Side 1 with a 7/16 - 20 UNF callout, male gender, and a 1/4" Jic type. Side 2 comes with an M10 x 1.0 callout, male gender, and a metric type of 10mm.

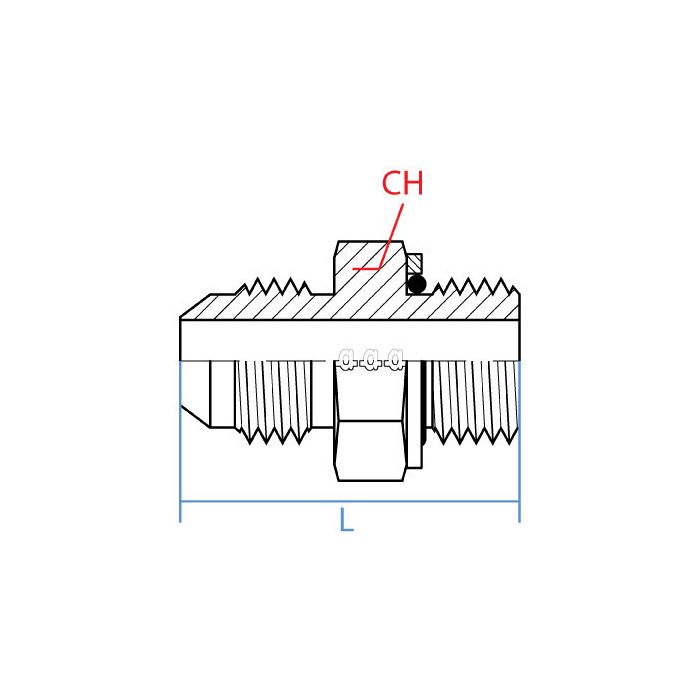

Engineered for reliability, this component measures 30.1mm in length and 16mm in width, ensuring a precise fit in various industrial applications. Its straightforward design eliminates the need for additional features such as ratcheting, color coding, or remote control.

The Male Jic X Male Metric W/Seal is designed without unnecessary complexitiesmdash;no calibration, batteries, or check valves required. This makes it particularly well-suited for specific engineering and manufacturing needs.

Supplier Part Number: 9068-04-10

Specifications

Brand adapt-all	Connection Size 2 10 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric with O-ring	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 16 mm	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 6000 psi	Series 9068 Series	Thread Size 7/16-20, M10x1

Similar Products

Model Number	Connection Size 1	Connection Type 1	Connection Size 2	Connection Type 2	Thread Size	Hex Size
9068-04-12		Male JIC	12 mm	Male Metric with O-ring	7/16-20 x M12x1.5	17 mm
9068-04-14		Male JIC	14 mm	Male Metric with O-ring	M14x1.5 x 7/16-20	19 mm
9068-05-12	1/2 in	Male JIC	12 mm	Male Metric with O-ring	1/2-20 x M12x1.5	17 mm
9068-06-12	9/16 in	Male JIC	12 mm	Male Metric with O-ring	9/16-18 x M12x1.5	17 mm
9068-06-14	9/16 in	Male JIC	14 mm	Male Metric with O-ring	9/16-18 x M14x1.5	19 mm
9068-06-16	9/16 in	Male JIC	S16	Male Metric with O-ring	9/16-18 x M16x1.5	22 mm
9068-06-18	9/16 in	Male JIC	18 mm	Male Metric with O-ring	9/16-18 x M18x1.5	24 mm
9068-08-12	3/4 in	Male JIC	12 mm	Male Metric with O-ring	3/4-16 x M12x1.5	19 mm
9068-08-14	3/4 in	Male JIC	14 mm	Male Metric with O-ring	3/4-16 x M14x1.5	22 mm
9068-08-16	3/4 in	Male JIC	S16	Male Metric with O-ring	3/4-16 x M16x1.5	22 mm
9068-08-18	3/4 in	Male JIC	18 mm	Male Metric with O-ring	M18x1.5 x 3/4-16	24 mm
9068-08-20	1/2 in	Male 37 deg JIC Flare	20 mm	Male Metric
9068-08-22	3/4 in	Male JIC	22 mm	Male Metric with O-ring	M22x1.5 x 3/4-16
9068-10-18	7/8 in	Male JIC	18 mm	Male Metric with O-ring	7/8-14, M18x1.5	24 mm
9068-10-20	7/8 in	Male JIC	20 mm	Male Metric with O-ring	7/8-14 x M20x1.5	27 mm
9068-10-22	7/8 in	Male JIC	22 mm	Male Metric with O-ring	7/8-14 x M22x1.5
9068-12-22		Male JIC	22 mm	Male Metric with O-ring	1-1/16-12 x M22x1.5
9068-12-26		Male JIC		Male Metric with O-ring	1-1/16-12 x M26x1.5	36 mm
9068-12-27		Male JIC		Male Metric with O-ring	1-1/16-12, M27x2	36 mm
9068-16-27		Male JIC		Male Metric with O-ring	1-5/16-12 x M27x2	36 mm
9068-16-33		Male JIC		Male Metric with O-ring	1-5/16-12, M33x2
9068-20-33		Male JIC		Male Metric with O-ring	1-5/8-12 x M33x2
9068-20-42		Male JIC		Male Metric with O-ring	1-5/8-12, M42x2
9068-24-48	1-7/8 in	Male JIC	M48	Male Metric with O-ring	1-7/8-12 x M48x2

Product Questions & Answers (3)

Question by: Norm S on Nov 9, 2025, 1:47 PM

got a hose end that’s 1/4 JIC, what’s on the other side of this adapter?

Answer by: Customer Support on Nov 11, 2025, 10:59 AM

On the metric side you are getting a male M10 x 1.0 connection, listed as 10mm.

Question by: Dwayne S on Jul 13, 2025, 2:17 PM

Will this fitting work for connecting a 1/4" JIC to a M10 x 1.0 port?

Answer by: Customer Support on Jul 15, 2025, 6:02 AM

Yes, this connector is made to adapt a 1/4" JIC male end to an M10 x 1.0 metric male port.

Question by: Freddie C on Apr 14, 2025, 1:52 PM

Part number 9068-04-10, does one side connect to a 7/16-20 JIC fitting and the other hook up to an M10 x 1.0 metric port?

Answer by: Customer Support on Apr 15, 2025, 9:02 PM

That's what you've got. Side 1 is a male 1/4" JIC with a 7/16-20 UNF thread, and Side 2 is a male metric 10mm with an M10 x 1.0 pitch. The seal is already built into the metric side, so you're bridging those two thread standards in one straight steel piece without needing extra hardware to make it leak-free.
