Male Jic X Male Metric W/ Seal

Description & Features

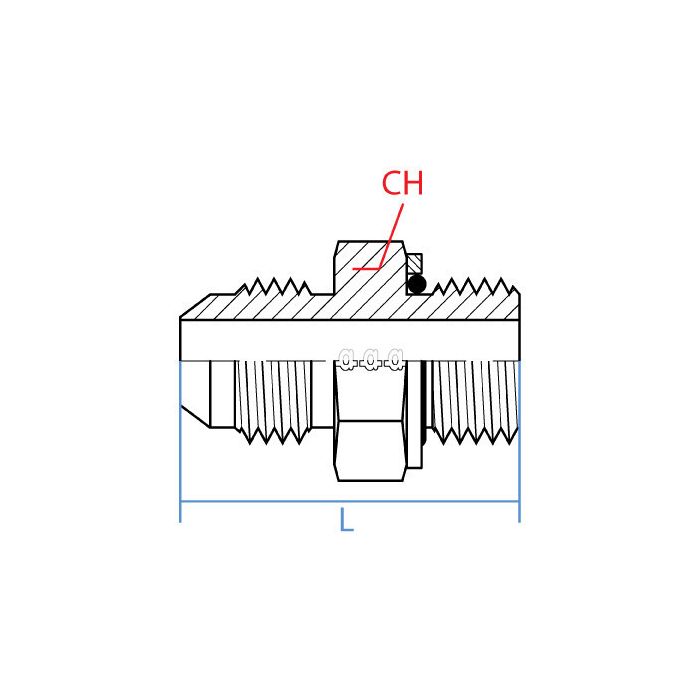

Crafted from durable steel, this product exemplifies robust performance in demanding environments. The fitting ensures a reliable connection between 7/16 - 20 UNF and M14 X 1.5 threads. With its straightforward design, it offers a practical solution for industrial applications. The fitting's dimensions include a CH width of 19mm and a length of 33.5mm, suitable for precise requirements. Featuring a straight shape, the male-to-male connection type provides compatibility with a wide range of systems, ensuring secure and leak-free connections. This product does not include features such as adjustment, battery, blades, calibration, or a case. There's no need for thread sealant, check valve, electrical flag, remote control, switch connector, or mandrel, highlighting its simplicity and efficiency. The absence of color coding and diode further emphasizes its straightforward design. This versatile fitting by Adaptall America is suitable for diverse industrial uses, delivering reliable performance without unnecessary complexity.

Supplier Part Number: 9068-04-14

Specifications

CH Width 19mm	L Length 33.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number FMC102-1958	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-04-14	Product Weight 0.24 lbs

Product Questions & Answers (3)

Question by: Kurt M on Jun 19, 2025, 8:11 AM

got a hose end that’s 7/16-20 UNF JIC, will this adapter go over to M14 x 1.5 on the other side?

Answer by: Customer Support on Jun 20, 2025, 12:15 PM

For tying two different thread standards together, it’s a straight male to male fitting with a 7/16 - 20 UNF JIC male on one end and an M14 x 1.5 metric male with seal on the other.

Question by: Keith S on Feb 6, 2026, 4:55 PM

Will this fitting work to connect a 7/16-20 UNF male end to a M14 X 1.5 port?

Answer by: Customer Support on Feb 8, 2026, 9:31 AM

Yes, this Adaptall fitting is designed to provide a secure and reliable connection between those two thread types.

Question by: Brent C on Aug 1, 2025, 8:43 AM

Does this fitting come with the seal already, or is that something I gotta track down separate?

Answer by: Customer Support on Aug 3, 2025, 6:07 AM

The seal is included. That's actually called out right in the product name, so you won't need to source one separately or mess with thread sealant to get a leak-free connection.
