Male Jic X Male Metric W/ Seal

Ask A Question

Description & Features

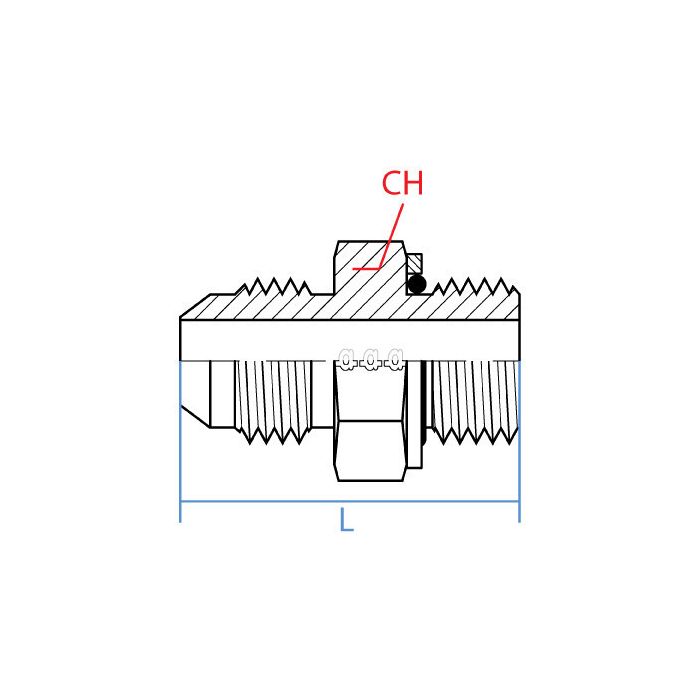

This steel straight adapter features a male JIC end and a male metric end with seal. The JIC side has a 5/16" size and 1/2 - 20 UNF callout, while the metric side measures 12mm with a M12 X 1.5 callout. This Male JIC X Male Metric W/ Seal adapter has an Adaptall channel width of 16mm and an overall length of 32.8mm.

SKU: 9068-05-12

Supplier Part Number (MPN): 9068-05-12

Specifications

Connection Size 1
1/2 in
Connection Size 2
12 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
17 mm
Material
Steel
Material Construction
Carbon Steel
Series
9068 Series
Thread Size
1/2-20 x M12x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Neil S on Mar 18, 2026, 8:45 AM
Got a piece of equipment running metric fittings on one end and JIC on the other, does this adapter go male to male on both sides, or is one of them female?
Answer by: Customer Support on Mar 19, 2026, 11:44 AM
Both ends are male on this one. The JIC side is a 1/2-20 UNF thread at 5/16" size, and the metric side is M12 x 1.5 at 12mm. So you'd be threading this into female receivers on both ends of your line. Straight configuration, no bends or offsets.
