Male Jic X Male Metric W/Seal

Description & Features

Constructed from robust steel, this straight adapter ensures reliable performance in industrial settings. One side of the Male Jic X Male Metric W/Seal has a 9/16 - 18 UNF thread, while the other side features an M12 X 1.5 thread, providing compatibility with standard fittings.

With a length of 33.2mm and a width of 17mm, this adapter meets precise engineering specifications. Its male gender on both sides guarantees an efficient and secure connection, making it ideal for various applications.

This connector is designed without an adjustable end, switch connector, or check valve, ensuring straightforward installation and maintenance. The high-quality material and construction assure a leak-proof connection, enhancing reliability in demanding environments.

MPN: 9068-06-12

Supplier Part Number: 9068-06-12

Specifications

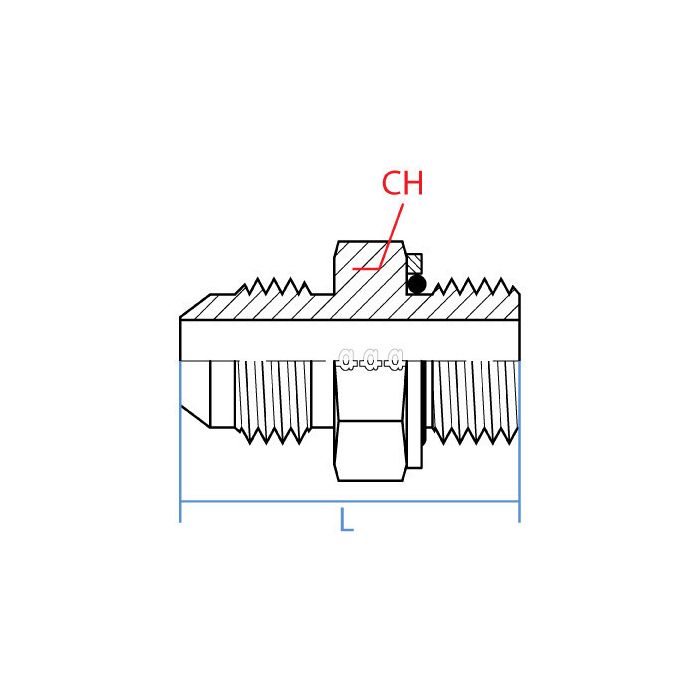

CH Width 17mm	L Length 33.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number 9068-0612, Alternate Part Number MI-02205839, Alternate Part Number MINO-03671X84787	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-06-12	Product Weight 0.06 lbs

Product Questions & Answers (3)

Question by: Frank C on Aug 25, 2025, 8:13 PM

trying to hook a 3/8 JIC line to an M12 x 1.5 port, is that what this adapter’s for?

Answer by: Customer Support on Aug 27, 2025, 6:38 AM

Built to bridge those two thread styles, it has a 9/16-18 UNF male JIC end (3/8 size) on one side and an M12 x 1.5 male metric end (12 mm size) on the other.

Question by: Warren H on Feb 26, 2026, 5:51 PM

Does this adapter go straight across, or is there some kind of angle to it? Trying to figure out if it'll fit in a tight spot without having to reroute my lines.

Answer by: Customer Support on Feb 28, 2026, 4:53 PM

Straight through, no angle. Both sides run in line with each other, so you're not gaining or losing any clearance from a bend. At 33.2mm long and 17mm wide, it's a pretty compact piece, which helps when space is limited.

Question by: Carl R on Nov 26, 2025, 10:39 AM

I just wanna make sure this here adapter will fit my setup. One side's gotta be 9/16 - 18 UNF, and the other's gotta be M12 X 1.5. Is that how it is?

Answer by: Customer Support on Nov 28, 2025, 6:34 AM

you're spot on. This straight adapter has a 9/16 - 18 UNF thread on one side and an M12 X 1.5 thread on the other, so it should fit just right if those are your requirements.
