Male Jic X Male Metric W/Seal

Description & Features

Manufactured by Adaptall America, this component offers robust performance. Engineered from steel, it is designed for durability and strength in industrial applications.

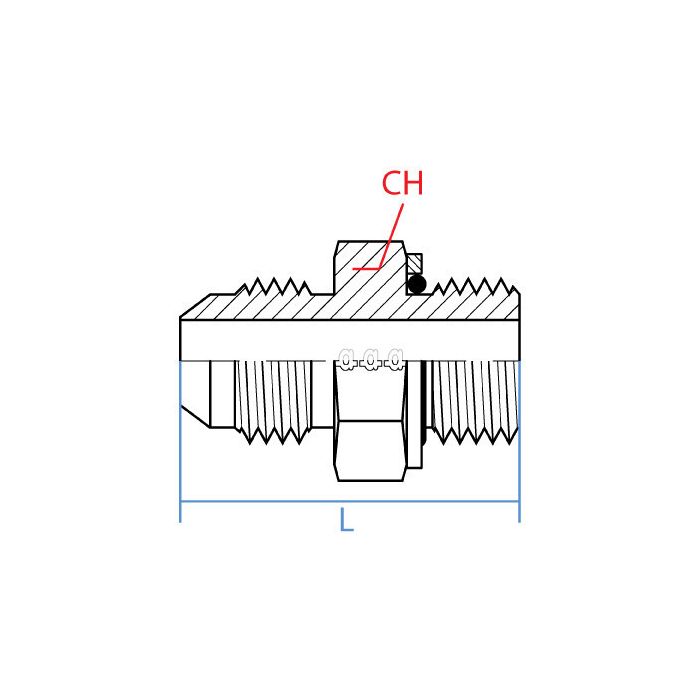

Featuring a straight design, the component ensures streamlined integration. It has a CH width of 19mm and an L length of 33.5mm, optimized for precision.

The part includes a 9/16 - 18 UNF male Jic connector on one end and an M14 X 1.5 male metric connector on the other. It does not require adjustment or calibration, making it suitable for stable applications.

Notably, it does not come with additional attachments such as blades, battery, or remote control, focusing on essential connection requirements.

Supplier Part Number: 9068-06-14

Specifications

CH Width 19mm	L Length 33.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number 9068-0614, Alternate Part Number FMC102-1829, Alternate Part Number MI-02472048, Alternate Part Number MINO-03671J02804	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-06-14	Product Weight 0.10 lbs

Product Questions & Answers (2)

Question by: Shawn P on Jun 21, 2025, 9:38 AM

Got a line running M14 x 1.5 metric on one end and need to tie into a 9/16-18 JIC fitting on the other, this the right adapter for that?

Answer by: Customer Support on Jun 22, 2025, 9:12 PM

That's exactly what this one's built for. One end is a 9/16-18 UNF male JIC, the other is M14 x 1.5 male metric, so it bridges those two thread standards in a straight configuration. The seal is included, so you're not hunting down a separate o-ring or seal kit to make the connection work. Steel construction, 33.5mm overall length, and a 19mm CH width if you need to confirm it clears your install space.

Question by: Ronnie B on Jan 13, 2026, 6:27 AM

So this is steel, right? Just making sure it's strong enough for what I need it for.

Answer by: Customer Support on Jan 14, 2026, 6:47 PM

Yes, this adapter is manufactured from steel, offering good durability for industrial applications.
